Product Details:
|
| Product Name: | Fan Valve Actuator/Damper Actuator | Material: | Aluminum |
|---|---|---|---|
| Color: | Red, Blue | Torque: | 5/10/15/20/30 N.m |
| Warranty: | 1 Year | Working Medium: | Water |
| Power: | Electric | Customized Support: | ISO9001:2008 |
| High Light: | Aluminum HVAC Control Parts,HVAC Control Parts 260V,Indoor Heating HVAC Damper Actuator |
||

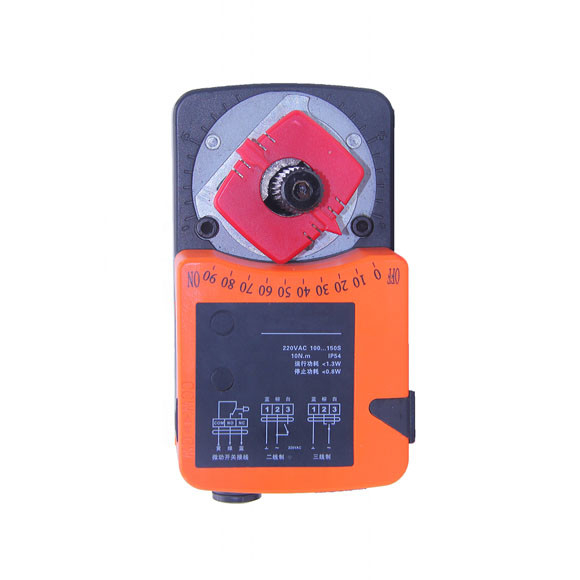

Damper Actuator of HVAC Control Refrigeration Parts used in Indoor Heating , Air Conditioning, Refrigeration
Product Introduction:
FFQ-A series damper actuator is widely used in heating, ventilation, air conditioning, refrigeration and other building automation system. By controlling the opening or closing the valve and the valve opening degree of the valve(modulation)to regulate the flow of wind in the pipeline system to get the needed room temperature.
Loading Port & Delivery
Loading Port: Ningbo/Shanghai
Delivery Support: By Land, by Sea or by Air
Features
Specification:
|
Order No.
|
Model No.
|
Torque
|
DN
|
Micro switch
|
Power
|
Kvs
|
Damper Are
a[kPa]
|
|
H17000
|
FFQ-AK-05-24
|
5N.m
|
ON/OFF 2,3-wire
|
-
|
24V DC/AC,50/60Hz
|
1.2W
|
1m²
|
|
H17001
|
FFQ-AK-05-220
|
5N.m
|
ON/OFF 2,3-wire
|
-
|
90~260VAC,50/60Hz
|
1.2W
|
1m²
|
|
H17002
|
FFQ-AK-05S1-24
|
5N.m
|
ON/OFF 2,3-wire
|
One
|
24V DC/AC,50/60Hz
|
1.2W
|
1m²
|
|
H17003
|
FFQ-AK-05S1-220
|
5N.m
|
ON/OFF 2,3-wire
|
One
|
90~260VAC,50/60Hz
|
1.2W
|
1m²
|
|
H17004
|
FFQ-AM-05-24
|
5N.m
|
Modulation
|
-
|
24V DC/AC,50/60Hz
|
1.2W
|
1m²
|
|
H17005
|
FFQ-AK-10-24
|
10N.m
|
ON/OFF 2,3-wire
|
-
|
24V DC/AC,50/60Hz
|
2.1W
|
2m²
|
|
H17006
|
FFQ-AK-10-220
|
10N.m
|
ON/OFF 2,3-wire
|
-
|
90~260VAC,50/60Hz
|
1.4W
|
2m²
|
|
H17007
|
FFQ-AK-10S1-24
|
10N.m
|
ON/OFF 2,3-wire
|
One
|
24V DC/AC,50/60Hz
|
2.1W
|
2m²
|
|
H17008
|
FFQ-AK-10S1-220
|
10N.m
|
ON/OFF 2,3-wire
|
One
|
90~260VAC,50/60Hz
|
1.4W
|
2m²
|
|
H17009
|
FFQ-AK-10S2-24
|
10N.m
|
ON/OFF 2,3-wire
|
Two
|
24V DC/AC,50/60Hz
|
2.1W
|
2m²
|
|
H17010
|
FFQ-AK-10S2-220
|
10N.m
|
ON/OFF 2,3-wire
|
Two
|
90~260VAC,50/60Hz
|
1.4W
|
2m²
|
|
H17011
|
FFQ-AM-10-24
|
10N.m
|
Modulation
|
-
|
24V DC/AC,50/60Hz
|
2.1W
|
2m²
|
|
H17012
|
FFQ-AK-15-24
|
15N.m
|
ON/OFF 2,3-wire
|
-
|
24V DC/AC,50/60Hz
|
3W
|
3m²
|
|
H17013
|
FFQ-AK-15-220
|
15N.m
|
ON/OFF 2,3-wire
|
-
|
90~260VAC,50/60Hz
|
1.6W
|
3m²
|
|
H17014
|
FFQ-AK-15S1-24
|
15N.m
|
ON/OFF 2,3-wire
|
One
|
24V DC/AC,50/60Hz
|
3W
|
3m²
|
|
H17015
|
FFQ-AK-15S1-220
|
15N.m
|
ON/OFF 2,3-wire
|
One
|
90~260VAC,50/60Hz
|
1.6W
|
3m²
|
|
H17016
|
FFQ-AK-15S2-24
|
15N.m
|
ON/OFF 2,3-wire
|
Two
|
24V DC/AC,50/60Hz
|
3W
|
3m²
|
|
H17017
|
FFQ-AK-15S2-220
|
15N.m
|
ON/OFF 2,3-wire
|
Two
|
90~260VAC,50/60Hz
|
1.6W
|
3m²
|
|
H17018
|
FFQ-AM-15-24
|
15N.m
|
Modulation
|
-
|
24V DC/AC,50/60Hz
|
3W
|
3m²
|
|
H17019
|
FFQ-AK-20-24
|
20N.m
|
ON/OFF 2,3-wire
|
-
|
24V DC/AC,50/60Hz
|
3.7W
|
4m²
|
|
H17020
|
FFQ-AK-20-220
|
20N.m
|
ON/OFF 2,3-wire
|
-
|
90~260VAC,50/60Hz
|
1.9W
|
4m²
|
|
H17021
|
FFQ-AK-20S1-24
|
20N.m
|
ON/OFF 2,3-wire
|
One
|
24V DC/AC,50/60Hz
|
3.7W
|
4m²
|
|
H17022
|
FFQ-AK-20S1-220
|
20N.m
|
ON/OFF 2,3-wire
|
One
|
90~260VAC,50/60Hz
|
1.9W
|
4m²
|
|
H17023
|
FFQ-AK-20S2-24
|
20N.m
|
ON/OFF 2,3-wire
|
Two
|
24V DC/AC,50/60Hz
|
3.7W
|
4m²
|
|
H17024
|
FFQ-AK-20S2-220
|
20N.m
|
ON/OFF 2,3-wire
|
Two
|
90~260VAC,50/60Hz
|
1.9W
|
4m²
|
|
H17025
|
FFQ-AM-20-24
|
20N.m
|
Modulation
|
-
|
24V DC/AC,50/60Hz
|
3.7W
|
4m²
|
|
H17026
|
FFQ-AK-30-24
|
30N.m
|
ON/OFF 2,3-wire
|
-
|
24V DC/AC,50/60Hz
|
3.7W
|
6m²
|
|
H17027
|
FFQ-AK-30-220
|
30N.m
|
ON/OFF 2,3-wire
|
-
|
90~260VAC,50/60Hz
|
1.9W
|
6m²
|
|
H17028
|
FFQ-AK-30S1-24
|
30N.m
|
ON/OFF 2,3-wire
|
One
|
24V DC/AC,50/60Hz
|
3.7W
|
6m²
|
|
H17029
|
FFQ-AK-30S1-220
|
30N.m
|
ON/OFF 2,3-wire
|
One
|
90~260VAC,50/60Hz
|
1.9W
|
6m²
|
|
H17030
|
FFQ-AK-30S2-24
|
30N.m
|
ON/OFF 2,3-wire
|
Two
|
24V DC/AC,50/60Hz
|
3.7W
|
6m²
|
|
H17031
|
FFQ-AK-30S2-220
|
30N.m
|
ON/OFF 2,3-wire
|
Two
|
90~260VAC,50/60Hz
|
1.9W
|
6m²
|
|
1H7032
|
FFQ-AM-30-24
|
30N.m
|
Modulation
|
-
|
24V DC/AC,50/60Hz
|
3.7W
|
6m²
|
