Product Details:
|
| Material: | Stainless Steel Casting | Product Name: | Motorized Zone Valve |
|---|---|---|---|
| Model No.: | As Form | Customized Support: | OEM, ODM |
| Power: | Electric | Port Size: | 32DN/40DN/50DN/65DN/80DN/100DN/125DN/150DN/200D |
| Working Temperature: | -10--+95 Degree | Certification: | SCOC |
| High Light: | Cast Ironed Electrically Operated Valve,Electrically Operated Valve 1.6MPa,Two Way Motorised Valve |
||

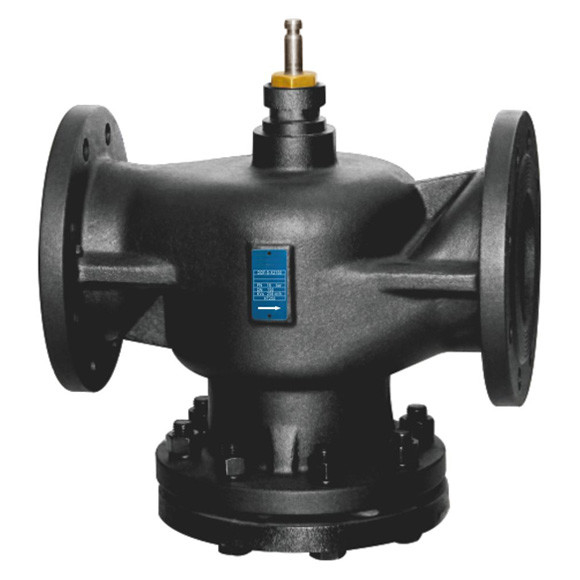

Cast Ironed electrically operated valve Suitable for Siemens Actuator, used in the liquid control system, HVAC control
Product Info:
● Stem seal: Four layer V type O nitrile rubber seals, PTFE envelope
● Stem material: stainless steel 06Cr19Ni10
● Valve core: Brass
● Nominal pressure (PN): 1.6MPa
● Working medium: Water, Fluid Temperature -10-95℃
● Valve leakage: Less than 0.05% of KVs
● Flange standard: GB/T 17241.6-2008 PN10
Loading Port & Delivery
Loading Port: Ningbo/Shanghai
Delivery Support: By Sea or by Air
Product Modal No. and Details
|
Model No.
|
DN
|
Connection type
|
Kvs
|
Travel
|
Dimensions
|
||||
|
L
|
d
|
D
|
H
|
H1
|
|||||
|
DDF-S-X-232
|
32
|
Flange
|
21
|
20
|
180
|
ø100
|
ø135
|
138
|
118
|
|
DDF-S-X-240
|
40
|
Flange
|
28
|
20
|
200
|
ø110
|
ø145
|
139
|
130
|
|
DDF-S-X-250
|
50
|
Flange
|
34
|
20
|
230
|
ø125
|
ø165
|
142
|
145
|
|
DDF-S-X-265
|
65
|
Flange
|
54
|
20
|
290
|
ø145
|
ø185
|
154
|
176
|
|
DDF-S-X-280
|
80
|
Flange
|
67
|
20
|
310
|
ø160
|
ø200
|
158
|
178
|
|
DDF-S-X-2100
|
100
|
Flange
|
120
|
40
|
350
|
ø180
|
ø220
|
200
|
210
|
|
DDF-S-X-2125
|
125
|
Flange
|
180
|
40
|
400
|
ø210
|
ø250
|
213
|
240
|
|
DDF-S-X-2150
|
150
|
Flange
|
256
|
40
|
480
|
ø240
|
ø285
|
229
|
280
|
|
DDF-S-X-2200
|
200
|
Flange
|
330
|
40
|
600
|
ø295
|
ø340
|
259
|
340
|
|
DDF-S-X-332
|
32
|
Flange
|
21
|
20
|
180
|
ø100
|
ø135
|
138
|
90
|
|
DDF-S-X-340
|
40
|
Flange
|
28
|
20
|
200
|
ø110
|
ø145
|
139
|
100
|
|
DDF-S-X-350
|
50
|
Flange
|
34
|
20
|
230
|
ø125
|
ø165
|
142
|
145
|
|
DDF-S-X-365
|
65
|
Flange
|
54
|
20
|
290
|
ø145
|
ø185
|
154
|
176
|
|
DDF-S-X-380
|
80
|
Flange
|
67
|
20
|
310
|
ø160
|
ø200
|
158
|
178
|
|
DDF-S-X-3100
|
100
|
Flange
|
120
|
40
|
350
|
ø180
|
ø220
|
200
|
210
|
|
DDF-S-X-3125
|
125
|
Flange
|
180
|
40
|
400
|
ø210
|
ø250
|
213
|
240
|
|
DDF-S-X-3150
|
150
|
Flange
|
256
|
40
|
480
|
ø240
|
ø285
|
229
|
280
|
|
DDF-S-X-3200
|
200
|
Flange
|
330
|
40
|
600
|
ø295
|
ø340
|
259
|
340
|
Features and Installation Notes:
.The series valve can be compatible with Siemens actuator.
.The valve stem downward running is the closing direction of the valve.
. Make sure the pipe is clean and without oxide and metal after welding before installation.
. It must be at the same point and free from shocks when connecting
the pipe and valve body. The flow direction should be same as the direction of the label.
. When the actuator is vertically installed on the valve, please avoid installing it under the valve to leave enough space for daily maintenance (like remove the actuator).
.Cut off the electricity to make sure there is no pressure in the water system when maintenance.
