Product Details:
|
| Material: | Brass, Stainless Steel | Valve Type: | 2-way 3-way |
|---|---|---|---|
| Nominal Pressure (PN): | 1.6MPa | Working Medium: | Water, Fluid Temperature -10-95℃ |
| Valve Leakage: | Less Than 0.05% Of KVs | Flange Standard: | GB/T 17241.6-2008 PN10 |
| Stem Seal: | Four Layers V Type O Nitrile Rubber Seals, PTFE Envelope | ||

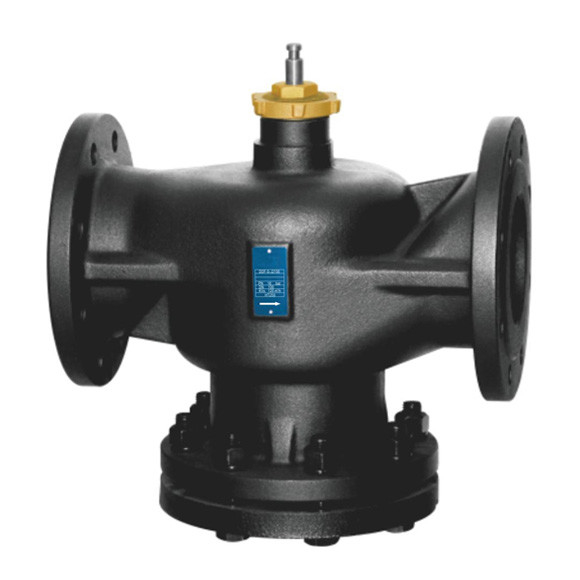

| High Light: | Brass HVAC Control Parts,HVAC Control Parts SCOC,Cast Ironed Electric Motorized Valve |
||
Features and Notes
1.The series valve can be compatible with Johnson actuator.
2.The valve stem downward running is the closing direction of the valve.
Make sure the pipe is clean and without oxide and metal after welding before installation.
3. It must be at the same point and free from shocks when connecting
the pipe and valve body. The flow direction should be same as the direction of the label.
4. When the actuator is vertically installed on the valve ,please avoid installing it under the valve to leave enough space for daily maintenance (like remove the actuator).
5.Cut off the electricity to make sure there is no pressure in the water system when maintenance.
Loading Port & Delivery
Loading Port: Ningbo/Shanghai
Delivery support: By Land, by Sea or by Air
Customized support: OEM, ODM
Product Type and Dimension:
|
Model No.
|
DN
|
Connection
|
Kvs
|
Travel
|
Dimensions
|
||||
|
type
|
L
|
d
|
D
|
H
|
H1
|
||||
|
DDF-S-J-232
|
32
|
Flange
|
21
|
20
|
180
|
ø100
|
ø135
|
125
|
118
|
|
DDF-S-J-240
|
40
|
Flange
|
28
|
20
|
200
|
ø110
|
ø145
|
128
|
130
|
|
DDF-S-J-250
|
50
|
Flange
|
34
|
20
|
230
|
ø125
|
ø165
|
128
|
145
|
|
DDF-S-J-265
|
65
|
Flange
|
54
|
20
|
290
|
ø145
|
ø185
|
140
|
176
|
|
DDF-S-J-280
|
80
|
Flange
|
67
|
20
|
310
|
ø160
|
ø200
|
147
|
178
|
|
DDF-S-J-2100
|
100
|
Flange
|
120
|
40
|
350
|
ø180
|
ø220
|
191
|
210
|
|
DDF-S-J-2125
|
125
|
Flange
|
180
|
40
|
400
|
ø210
|
ø250
|
205
|
240
|
|
DDF-S-J-2150
|
150
|
Flange
|
256
|
40
|
480
|
ø240
|
ø285
|
221
|
280
|
|
DDF-S-J-2200
|
200
|
Flange
|
330
|
40
|
600
|
ø295
|
ø340
|
254
|
340
|
|
DDF-S-J-332
|
32
|
Flange
|
21
|
20
|
180
|
ø100
|
ø135
|
125
|
118
|
|
DDF-S-J-340
|
40
|
Flange
|
28
|
20
|
200
|
ø110
|
ø145
|
128
|
130
|
|
DDF-S-J-350
|
50
|
Flange
|
34
|
20
|
230
|
ø125
|
ø165
|
128
|
145
|
|
DDF-S-J-365
|
65
|
Flange
|
54
|
20
|
290
|
ø145
|
ø185
|
140
|
176
|
|
DDF-S-J-380
|
80
|
Flange
|
67
|
20
|
310
|
ø160
|
ø200
|
147
|
178
|
|
DDF-S-J-3100
|
100
|
Flange
|
120
|
40
|
350
|
ø180
|
ø220
|
191
|
210
|
|
DDF-S-J-3125
|
125
|
Flange
|
180
|
40
|
400
|
ø210
|
ø250
|
205
|
240
|
|
DDF-S-J-3150
|
150
|
Flange
|
256
|
40
|
480
|
ø240
|
ø285
|
221
|
280
|
|
DDF-S-J-3200
|
200
|
Flange
|
330
|
40
|
600
|
ø295
|
ø340
|
254
|
340
|
Structure Diagram
