Product Details:
|
| Material: | Stainless Steel Casting | Product Name: | Motorized Zone Valve |
|---|---|---|---|
| Model No.: | As Form | Customized Support: | OEM, ODM |
| Power: | Electric | Port Size: | 32DN/40DN/50DN/65DN/80DN/100DN/125DN/150DN/200D |
| Working Temperature: | -10--+95 Degree | Certification: | SCOC |
| High Light: | Cast Ironed HVAC Control Parts,Dynamic HVAC Control Parts Dynamic,Electric Balancing Motorized Valve |
||

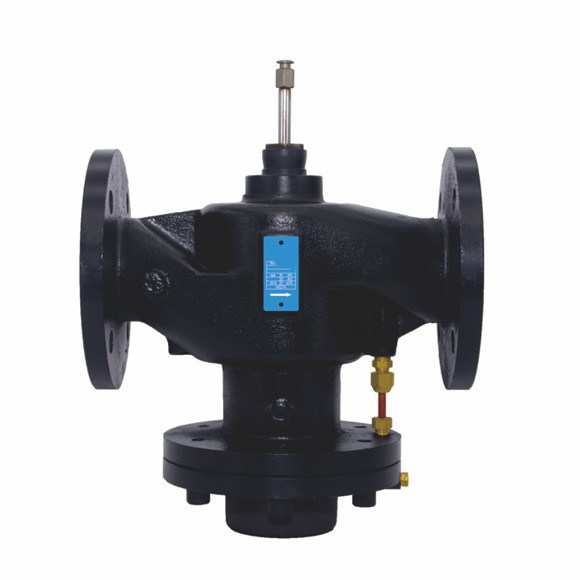

Dynamic Balancing Motorized Valve, Cast Ironed Dynamic Balance Electric Control Valve for Honeywell Actuator, 2 Way,
Product Info:
● Stem seal: four layer V type O nitrile rubber seals, PTFE envelope
● Stem material: stainless steel 06Cr19Ni10
● Valve core: Brass
● Nominal pressure (PN): 1.6MPa
● Working medium: Water, Fluid Temperature -10-95℃
● Valve leakage: Less than 0.05% of KVs
● Flange standard: GB/T 17241.6-2008 PN10
Loading Port & Delivery
Loading Port: Ningbo/Shanghai
Delivery Support: By Sea or by Air
Product Model No. and Details
|
Order No.
|
Model No.
|
Valve Type
|
DN
|
Connection
|
Thread Size
|
Kvs
|
|
type
|
||||||
|
H14086
|
PHF-DD-X32F
|
2-way
|
32
|
Flange
|
4xM16
|
9
|
|
H14087
|
PHF-DD-X40F
|
2-way
|
40
|
Flange
|
4xM16
|
12
|
|
H14088
|
PHF-DD-X50F
|
2-way
|
50
|
Flange
|
4xM16
|
17
|
|
H14089
|
PHF-DD-X65F
|
2-way
|
65
|
Flange
|
4xM16
|
23
|
|
H14090
|
PHF-DD-X80F
|
2-way
|
80
|
Flange
|
8xM16
|
39
|
|
H14091
|
PHF-DD-X100F
|
2-way
|
100
|
Flange
|
8xM16
|
53
|
|
H14092
|
PHF-DD-X125F
|
2-way
|
125
|
Flange
|
8xM16
|
80
|
|
H14093
|
PHF-DD-X150F
|
2-way
|
150
|
Flange
|
8xM20
|
102
|
|
H14094
|
PHF-DD-X200F
|
2-way
|
200
|
Flange
|
12xM20
|
180
|
|
Model No.
|
Dimensions
|
||||||||
|
A
|
B
|
C
|
D
|
E
|
F
|
H
|
N
|
K
|
|
|
PHF-DD-X32F
|
ø32
|
ø100
|
ø135
|
180
|
132
|
138
|
96
|
4
|
ø18
|
|
PHF-DD-X40F
|
ø40
|
ø110
|
ø144
|
200
|
146
|
139
|
96
|
4
|
ø18
|
|
PHF-DD-X50F
|
ø50
|
ø125
|
ø164
|
230
|
164
|
142
|
96
|
4
|
ø18
|
|
PHF-DD-X65F
|
ø65
|
ø145
|
ø184
|
290
|
201
|
155
|
96
|
4
|
ø18
|
|
PHF-DD-X80F
|
ø80
|
ø160
|
ø198
|
310
|
219
|
158
|
96
|
8
|
ø18
|
|
PHF-DD-X100F
|
ø100
|
ø180
|
ø219
|
350
|
241
|
205
|
112
|
8
|
ø18
|
|
PHF-DD-X125F
|
ø125
|
ø210
|
ø249
|
400
|
276
|
216
|
112
|
8
|
ø22
|
|
PHF-DD-X150F
|
ø150
|
ø240
|
ø284
|
480
|
337
|
232
|
112
|
8
|
ø22
|
|
PHF-DD-X200F
|
ø200
|
ø295
|
ø340
|
600
|
403
|
257
|
112
|
12
|
ø22
|
Product Precessing:
