Product Details:
|
| Motor: | AC Induction Motor | Power Supply: | 110V/60HZ |
|---|---|---|---|
| Speed Regulation: | Fixed Speed | Working Environment: | 5°C~40°C (41°F~104°F) |
| Transmission Distance: | 30ft /10m | Limit Vacuum: | 15 Micron |
| Pumping Rate: | 7 CFM (3 L/S) | Customized Support: | OEM, ODM |
| High Light: | 7 Cfm Vacuum Pump,7 Cfm Vacuum Pump 0.75 HP,SVP-7 HVAC |
||

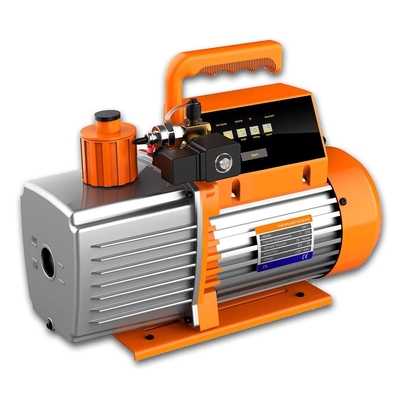

SVP-7 Intelligent HVAC 0.75 HP Vacuum Pump 7 CFM 2 Stage View Vacuum Value in Graph on Touch Screen
Description
SVP-7 refrigerant vacuum pump is a 7 CFM, dual-stage unit with an innovative touch screen design. The informative screen displays the pressure at the vacuum inlet and graphs the pressure change over time to help you know more about how your HVAC job is going on. SVP-7 enables your smartphone App to connect with the pump in order to realize remote control, setting, real-time reading, and data report export function to make your work more convenient.

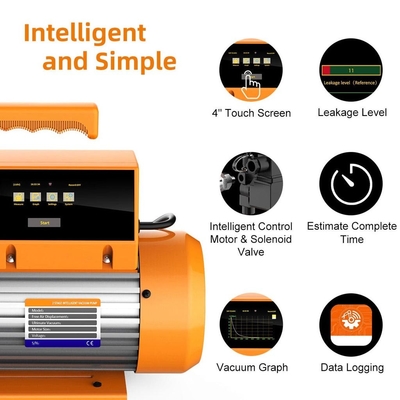

Feature

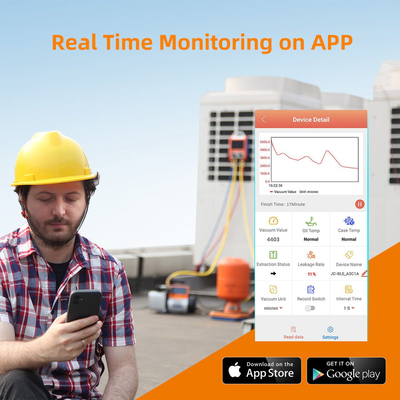

Innovative Tools APP ( Supported ioS and Android): Tools, an intergraded app, that allows users to manage all tools such as vacuum pump, digital manifold, vacuum gauge, pressure gauge, refrigerant charging scale on one app, much more efficient and intelligent.
Auto Control: Intelligent control of the motor, the solenoid valve will open or close instantly according to the motor status

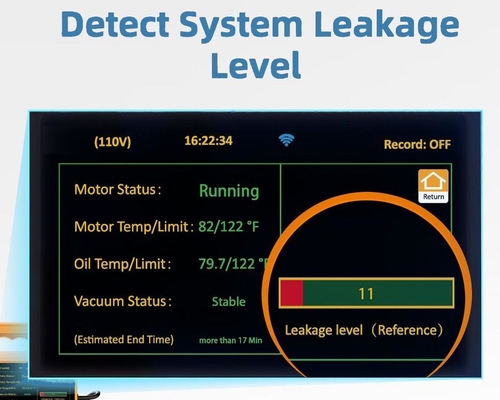

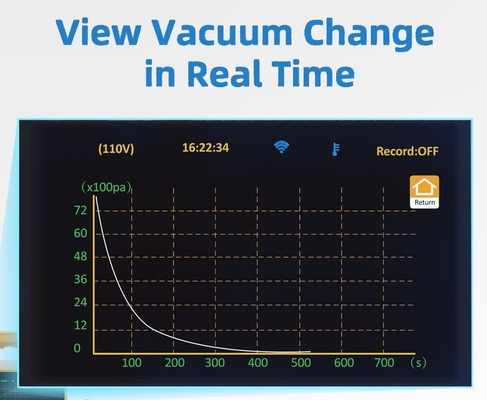

Vacuum Graph: View the vacuum change process in real-time; Analyze the leakage status and job completion time
Efficient and Reliable: Constantly vacuum control, oil tank and motor temperature monitoring

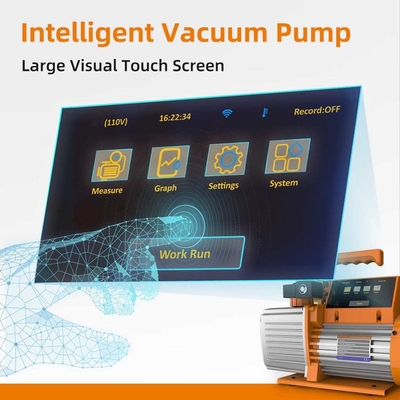

Easy to Use: 4" touch screen, remote control via App. Comes with 2 bottles of vacuum oil (300ml+450ml)

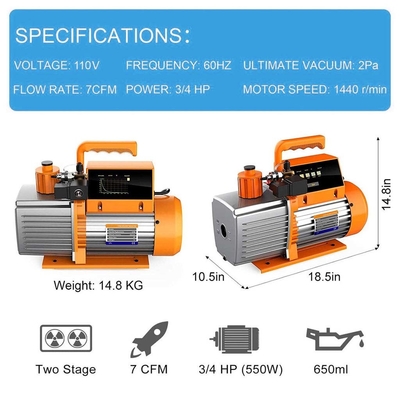

Technical Parameter
|
Stage |
2 Stages |
|
Power Supply |
110V/60HZ |
|
Motor |
AC Induction Motor |
|
Speed Regulation |
Fixed Speed |
|
Vacuum Accuracy |
±10% of Reading / ±10 microns(@1-10000 microns) ±20% of Reading(@10000-19000 microns) |
|
Operating Temperature |
5°C~40°C (41°F~104°F) |
|
Transmission Distance |
30ft / 10m |
Notes: Above 60,000 microns, vacuum value is not shown and the screen shows --. The waiting time for the vacuum reading is longer for a large system.
Product Comparision Chart
|
|
SVP-7 |
SVP-9 |
SVP-12 |
V700 |
V900 |
V1200 |
|
Pumping Rate |
7CFM(3L/S) |
9CFM(4L/S) |
12CFM(5L/S) |
7CFM(3L/S) |
9CFM(4L/S) |
12CFM(5L/S) |
|
Stage |
2 |
2 |
2 |
2 |
2 |
2 |
|
Limit Vacuum |
15 Microns |
15 Microns |
15 Microns |
15 Microns |
15 Microns |
15 Microns |
|
Power Supply |
110V/60HZ(220V customizable) |
110V/60HZ(220V customizable) |
110V/60HZ(220V customizable) |
110V/60HZ(220V customizable) |
110V/60HZ(220V customizable) |
110V/60HZ(220V customizable) |
|
Motor Power |
3/4HP(550W) |
1HP(750W) |
1HP(750W) |
3/4HP(550W) |
1HP(750W) |
1HP(750W) |
|
Oil Volume |
2202(650ml) |
2202(650 ml) |
25.3oz(750ml) |
22oz(650ml) |
220z(650ml) |
25.302(750ml) |
|
Pump Type |
Dry Rotary Vane |
Dry Rotary Vane |
Dry Rotary Vane |
Dry Rotary Vane |
Dry Rotary Vane |
Dry Rotary Vane |
|
Transmission Distance |
30ft/10m |
30ft/10m |
30ft/10m |
30ft/10m |
30ft/10m |
30ft/10m |
|
weight |
34.2lbs/14.5kg |
35.3lbs/15.3 kg |
36.8lbs/16kg |
34.2 lbs/14.5kg |
34.2135.31bs/15.3sks/14.5kg |
36.8lbs/16kg |
Built-in Vacuum Sensor VS Micron Gauge: Due to the different placements of vacuum sensors, the vacuum reading of the pump may vary with the micron gauge which is connected to the system. The airflow is not the same at different placements in the system when vacuuming. The air density is larger which is far away from the pump, so the readings of vacuum are high.
Oil Mist Notes:
When starting vacuuming, the pressure is relatively high, the air outlet is large. The vacuum pump has a large exhaust volume. So there will be oil mist overflowing with gas. This is a common feature of rotary vane vacuum pumps. Oil mist appears at first which is a normal phenomenon. When the vacuum drops to a very low value, the exhausting volume is small and there will be no oil mist. Therefore, the vacuum pump should regularly inspect the oil level to avoid running out of oil.
