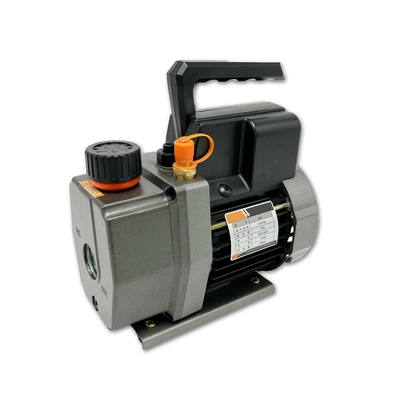

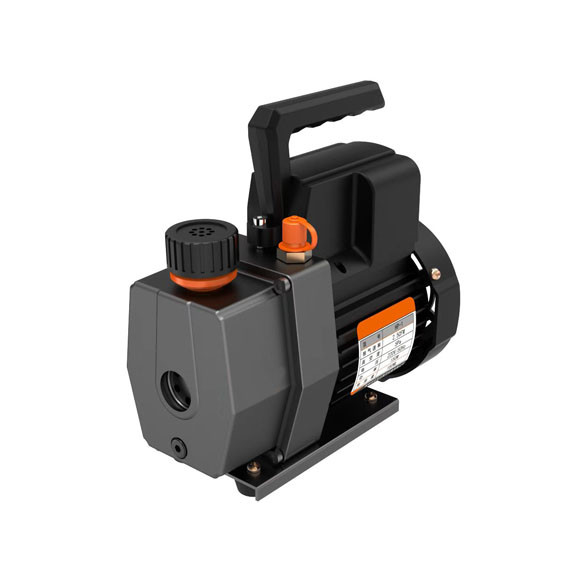

Intelligent Refrigeration Spare Parts Small Vacuum Pump 110V 50Hz 0.13HP

HP- 1 Intelligent Mini Vacuum Pump Rotary Vane 2 CFM 1 Stage 0.16667HP Refrigeration Spare Parts

Description

It can be widely used in refrigeration maintenance, mobile phone burst screen maintenance, medical equipment, automotive industry, automatic control, printing machinery, packaging machinery, food preservation, aquaculture, water purification treatment, analytical instruments, beauty and health care, advertising production, equipment maintenance, biology Pharmaceuticals, communication electronics, petrochemicals, environmental detection systems, oxygen production in plateau areas, etc., and can be used as a fore pump of various high vacuum equipment.

Feature

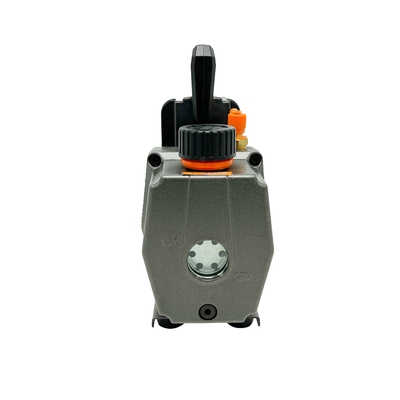

* Oil window: Large oil window design, prevent lack of oil

* Pump head:integral cylinder structure, high precision, high ultimate vacuum degree

* Forced oil feed: Forced oil pump lubrication to ensure high reliability

* Oil mist trap:five layers of filter, effectively prevent the splash of lampblack, reduce noise

* It can work in low temperature environment,even in cold winter

* Unlike the traditional ones ,HP-1 are much lighter and smaller ,which is easy to carry.

Technical Parameter

Product Comparision Chart

Built-in Vacuum Sensor VS Micron Gauge: Due to the different placements of vacuum sensors, the vacuum reading of the pump may vary with the micron gauge which is connected to the system. The airflow is not the same at different placements in the system when vacuuming. The air density is larger which is far away from the pump, so the readings of vacuum are high.

Oil Mist Notes:

When starting vacuuming, the pressure is relatively high, the air outlet is large. The vacuum pump has a large exhaust volume. So there will be oil mist overflowing with gas. This is a common feature of rotary vane vacuum pumps. Oil mist appears at first which is a normal phenomenon. When the vacuum drops to a very low value, the exhausting volume is small and there will be no oil mist. Therefore, the vacuum pump should regularly inspect the oil level to avoid running out of oil.

Usable Range

The single stage series of the single-stroke oil-rotating-vane vacuum pumps and the two stage series of the double-stroke oil-rotatingvane vacuum pumps are the equipments for obtaining vacuum by pumping the gases from sealed containers, especially suitable for the pumping work for cold-producing maintenance(for the vacuum pumping with R 12,R 22, or R134aas cold-producing medium), medical appliances printing machinery, vacuum packing, gas-analysis and hot-forming plastics. And they can also be used as the fore-stroke pumps of all kinds of high-vacuum equipments.

Product detailed description

▲Preventing oil-returning design

The passage for gas entering is specially designed, which can prevent the oil flowing back and so prevent the pumped container and tubes from being polluted.

▲Environment-protecting design

The tank is separated, and there are separating devices at the exhaust port, It can avoid oil-spraying and reduse pollution.

▲Alloy aluminium casing

Alloy aluminium casing is used in this kind of electrical mavhinery, it has high heat-scattering efficiency, which can keep the pump run-ning normally, long-lasting. And it has better outer-figure quality.

▲Overall design

The electric machinery and the pump are wholly designed and direct drive, which makes the product more compact, lighter and more rational.

▲Great starting moment

The design of great starting moment is easy for starting and high in efficiency, which can keep it running normally even in lower tewperature environment and lower volt.

A Forced-feed lubrication system(dual-stage vacuum pump)

The products incorporate the lubrication system designed to provide clean, filtered oil to all internal bearings and wear surface, regardless of the pump operateing pressure. Cleaner oil means reduced maintenance and lower operating costs.

▲Low noise and vibration

An elastomeric coupling insert between the motor and module results in extremely quiet, smooth-running operation.

Users'Manual

▲Examine the oil-lever before using yo make sure the oil-level is not lower than the oil-level line. If power than that it should be oiled without delay(This pump uses high-speed vacuum oil of HFV 32)

▲Take down the gas-filling cap and connect the pumped container. And the pipe should be short, sealed and there should’t any drip.

▲Take down the exhaust cap, plug the power supply and switch on. And you can operate now.

▲Pull out the plug after using, removings the connecting pipes and cover the exhaust cap and the oil plug.
