Product Details:
|
| Material: | Forging Brass And PTFE/HNBR | Type: | Valve 2- Way |
|---|---|---|---|
| Color: | Blue, Black, Red. Golden | Size: | 9*9 |
| Customized Support: | OEM, ODM | Warranty: | 1 Year |
| Temperature Of Media: | 5-95 Degree | Working Medium: | Water |
| High Light: | Refrigeration motorized ball valve,motorized ball valve Brass,dn20 ball valve |
||

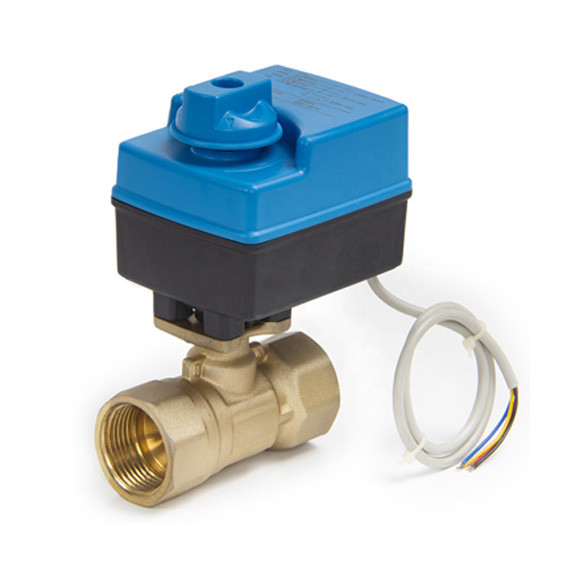

Refrigeration Equipment Brass Kv9.5 Dn20 Motorized Ball Valve for Air Conditioning
Product Info:
Pressure: 1.6Mpa
KVS: 9.5
Connection: Thread
Valve opening Torque: DN15~DN25<1N.m,DN32~50<2N.m
Actuator torque:2N.m Nominal Pressure:16MPa
Fluid temperature 5-95
Product Advantages:
1.Easy installation and cost saving.
2.Closing tightly and having a great differential pressure.
3.Water flow smoothly and it won't be blocked by slag. KVS value
is much larger than common -way valve.
4.Valve opens sofety to guard effectively against water hammer.
Loading Port & Delivery
Loading Port: Ningbo/Shanghai
Delivery Support: By Land, by Sea or by Air
Product Type and Details:
| Order No. |
Model No. | Valve Type |
DN | Thread Size |
Kvs | Maximum differential pressure kPa |
Demension | |
| L | H | |||||||
| H15009 | DQF-B-215*DQQ-B1K-220 | 2-way | 15 | G1/2 | 5.6 | 600 | 60 | 30 |
| H15079 | DQF-B-220*DQQ-B1K-220 | 2-way | 20 | G3/4 | 9.5 | 600 | 68 | 34 |
| H15163 | DQF-B-225*DQQ-B1K-220 | 2-way | 25 | G1 | 9.5 | 500 | 89 | 38 |
| H15216 | DQF-B-315*DQQ-B1K-220 | 3-way | 15 | G1/2 | 5.6 | 600 | 60 | 30 |
| H15286 | DQF-B-320*DQQ-B1K-220 | 3-way | 20 | G3/4 | 9.5 | 600 | 67 | 35 |
| H15356 | DQF-B-325*DQQ-B1K-220 | 3-way | 25 | G1 | 13 | 500 | 89 | 38 |
| H15008 | DQF-B-215*DQQ-B1M-24AC | 2-way | 15 | G1/2 | 5.6 | 600 | 60 | 30 |
| H15078 | DQF-B-220*DQQ-B1M-24AC | 2-way | 20 | G3/4 | 9.5 | 600 | 68 | 34 |
| H15162 | DQF-B-225*DQQ-B1M-24AC | 2-way | 25 | G1 | 9.5 | 500 | 89 | 38 |
| H15215 | DQF-B-315*DQQ-B1M-24AC | 3-way | 15 | G1/2 | 5.6 | 600 | 60 | 30 |
| H15285 | DQF-B-320*DQQ-B1M-24AC | 3-way | 20 | G3/4 | 9.5 | 600 | 67 | 35 |
| H15355 | DQF-B-325*DQQ-B1M-24AC | 3-way | 25 | G1 | 13 | 500 | 89 | 38 |
|
Note: the table above is the commonly recommended model. Please refer to the below model selected |
||||||||
Product Functions:
Wire Diagram:
Installation Notes:
