Product Details:
|
| Product Name: | Motorized Zone Valve | Material: | Aluminum Alloy |
|---|---|---|---|
| Weight: | 4.5kg | Fluid Temperature: | <95℃ |
| Warranty: | 1 Year | Thrust: | 1000N |
| Power: | Electric, 24VAC±10% 50/60Hz | Customized Support: | OEM, ODM |
| High Light: | Refrigeration Hvac Valve Actuator,Hvac Valve Actuator 50Hz,Hvac Electrically Controlled valve |
||

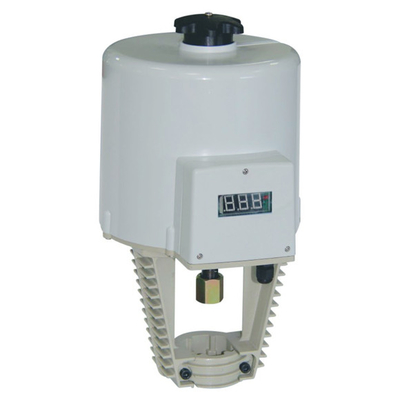

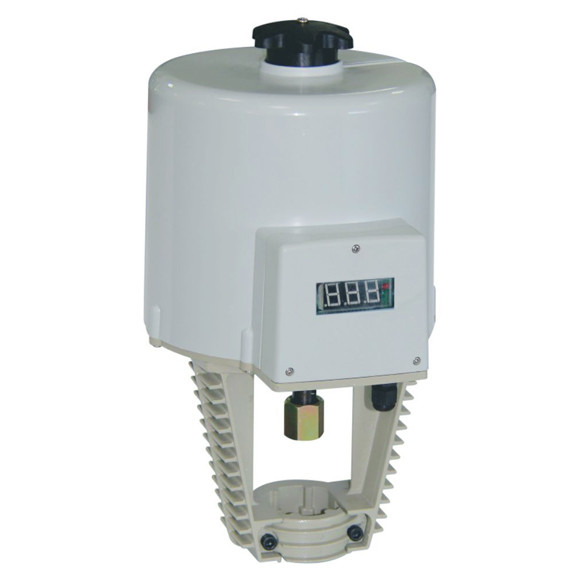

Refrigeration Hvac Valve Actuator Electrically Controlled Valve For Air Conditioner Actuator Suitable for Siemens
Product Introduction:
DQF-X series motorised valve actuator is matched with 2,3-way motorised valve to adjust the medium flow.It's widely used in central air conditioning system, heating system and other occasions to meet the user from simple single-room temperature control to complex building automatic control requirements. It can achieve the required ambient temperature,obtain a comfortable environment and save energy through flow control.
Product Features:
1. Easy installation.
2. Terminal limit switch
3. Connecting rod is unnecessary
4. Forward and reverse action
5 .Accurate valve positioning
6. Synchronous motor
9. With manual operator
10. Corrosion protection design
11. Maintenance free
Loading Port & Delivery
Loading Port: Ningbo/Shanghai
Delivery Support: By Land, by Sea or by Air
Product Type and Size:
| Model No. | DFQ-XFM | DFQ-XFM-485 | DFQ-XFK |
| Power | 24VAC±10% 50/60Hz | ||
| Power consumption | 20.1W when frequency is 50Hz 26.0W when frequency is 60Hz |
20.5W when frequency is 50Hz 27.6W when frequency is 60Hz |
|
| Input signal | 0(2)~10V,0(4)~20mA optional | 24VAC | |
| Signal feedback | 0(2)~10V | 0(2)~10V, 0(4)~20mA optional |
24VAC |
| Thrust | 5000N | ||
| Journey | 40mm | ||
| Journey time | 240 seconds when 50Hz 200 seconds when 60Hz |
||
| Material | Gear: formaldehyde, nylon | ||
| Lower plate of reducer: galvanized steel | |||
| Bracket: die-cast aluminum alloy | |||
| Housing: flame retardant ABS engineering plastic | |||
| Temperature | Ambient temperature: -10 ~ +50ºC Storage temperature: -40 ~ +50ºC | ||
| Protection Class | IP54 | ||
| Humidity | 1%-95% RH no dew | ||
| Fluid temperature | <150ºC | ||
| Weight | 4.25kg | ||
