Product Details:
|
| Product Name: | Motorized Zone Valve | Material: | Aluminum Alloy |
|---|---|---|---|
| Weight: | 1.6kg | Fluid Temperature: | <150℃ |
| Warranty: | 1 Year | Thrust: | 1000N |
| Power: | Electric, 24VAC±10% 50/60Hz | Customized Support: | OEM, ODM |
| High Light: | Electrically HVAC Control Parts,Motorised HVAC Control Parts,HVAC Motorised Valve Actuator |
||

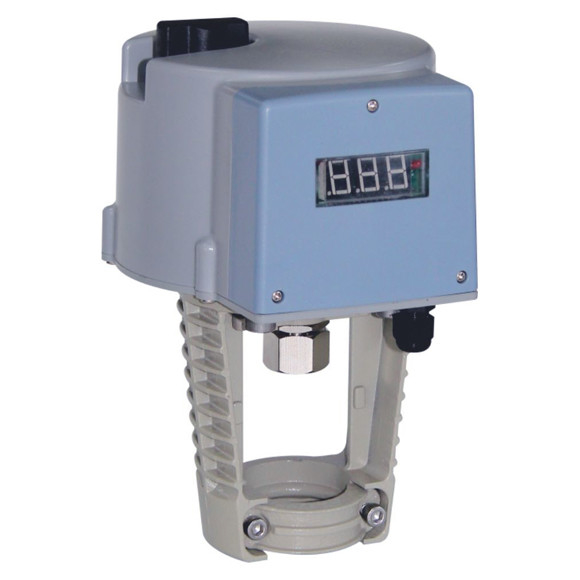

Refrigeration Hvac Valve Actuator Electrically Controlled Valve For Air Conditioner
Product Introduction:
DQF-X series motorised valve actuator is matched with 2,3-way motorised valve to adjust the medium flow.It's widely used in central air conditioning system, heating system and other occasions to meet the user from simple single-room temperature control to complex building automatic control requirements. It can achieve the required ambient temperature,obtain a comfortable environment and save energy through flow control.
Product Features:
1. Easy installation.
2. Terminal limit switch
3. Connecting rod is unnecessary
4. Forward and reverse action
5 .Accurate valve positioning
6. Synchronous motor
9. With manual operator
10. Corrosion protection design
11. Maintenance free
Loading Port & Delivery
Loading Port: Ningbo/Shanghai
Delivery Support: By Land, by Sea or by Air
Product Type and Size:
|
Order No.
|
Model
|
Model
|
Adaptation motorized valve
|
|
H12563
|
DFQ-XEK
|
ON/OFF,24VAC
|
X series valve range from DN32-80
|
|
H12660
|
DFQ-XEK-220
|
ON/OFF,220VAC
|
X series valve range from DN32-80
|
|
H12564
|
DFQ-XEM
|
Modulation,24VAC
|
X series valve range from DN32-80
|
|
H12661
|
DFQ-XEM-485
|
Modulation,with RS-485 interface
|
X series valve range from DN32-80
|
|
Model No.
|
DFQ-XEM
|
DFQ-XEM-485
|
DFQ-XEK
|
DFQ-XEK-220
|
|
Power
|
24VAC±10% 50/60Hz
|
220VAC±10% 50/60Hz
|
||
|
Power consumption
|
5.6W when frequency is 50Hz
6W when frequency is 60Hz |
|||
|
Input signal
|
0(2)~10V,0(4)~20mA optional
|
24VAC
|
220VAC
|
|
|
Signal feedback
|
0(2)~10V
|
0(2)~10V,
0(4)~20mA optional |
24VAC
|
220VAC
|
|
Thrust
|
1000N
|
|||
|
Journey
|
22mm
|
|||
|
Journey time
|
50Hz,105s
60Hz,90s |
|||
|
Material
|
Gear: formaldehyde, nylon
|
|||
|
Lower plate of reducer: galvanized steel
|
||||
|
Bracket: die-cast aluminum alloy
|
||||
|
Housing: flame retardant ABS engineering plastic
|
||||
|
Temperature
|
Ambient temperature: -10 ~ +50℃ Storage temperature: -40 ~ +50℃
|
|||
|
Protection Class
|
IP54
|
|||
|
Humidity
|
1%-95% RH no dew
|
|||
|
Fluid temperature
|
<150℃
|
|||
|
Weight
|
1.6Kg
|
|||
