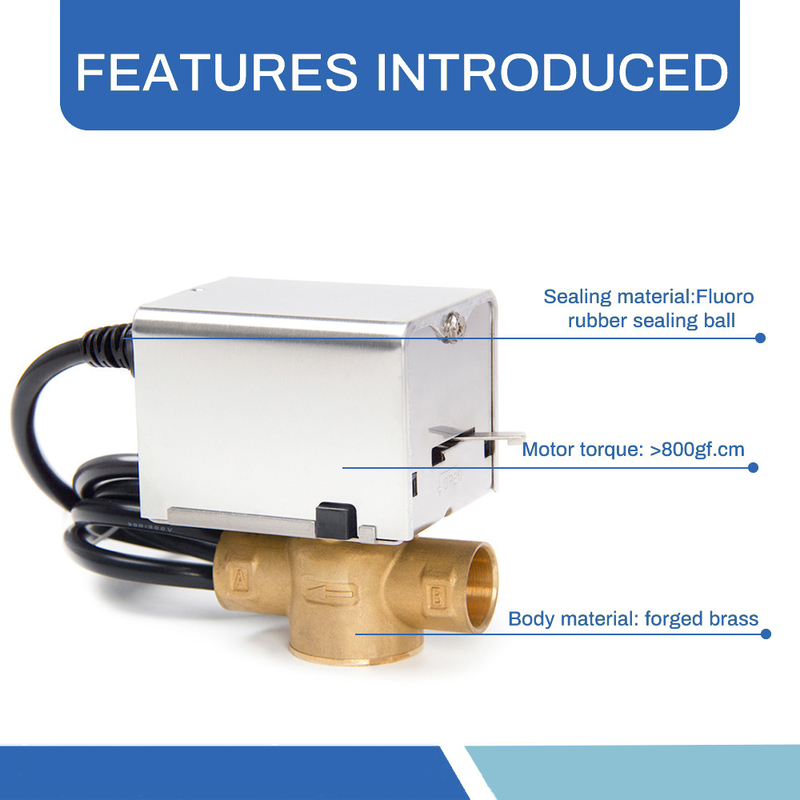

HVAC Control 2 Way Motorized Valve Pressure Relief Forged Brass

2 Way of DDF-X-H series Motorized valve for HVAC Control

Product Details:

Product Name: Gate Valves, Water Heater Service Valves, Temperature & Pressure Relief Valves

Valve type: 2-way

Place of Origin: Zhejiang, China

Temperature of Media: Normal Temperature

Working medium: Cold/Hot water

Working pressure:1.6 Mpa

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Introduction:

DDF-X series motorized valve is available for controlling central air conditioning and water heating system's opening and closing to

control the room temperature. The control valve depends on the paraffin wax propeller drives the spring to reset. The actuator is

normally closed when it doesn't work. If it needs to work, the thermostat will provide a signal of opening, then the actuator will

get the power to work. Opening the valve, the cold and hot water will come into the fan coil to provide the cold or hot air. When the

set temperature is achieved, the thermostat will cut off the actuator 's power, then the reset spring can close the valve to stop the water

which flows into the coil. Hence the room temperature is always maintained within the set range by the valve's opening and closing.

The actuator and valve are connected by clamp connection way. Actuator should be installed after the valve. The installation is very

convenient. Actuator installation can be close to the wall to savespace. This product is durable and reliable.The operating noise is

very low.

Specification:
