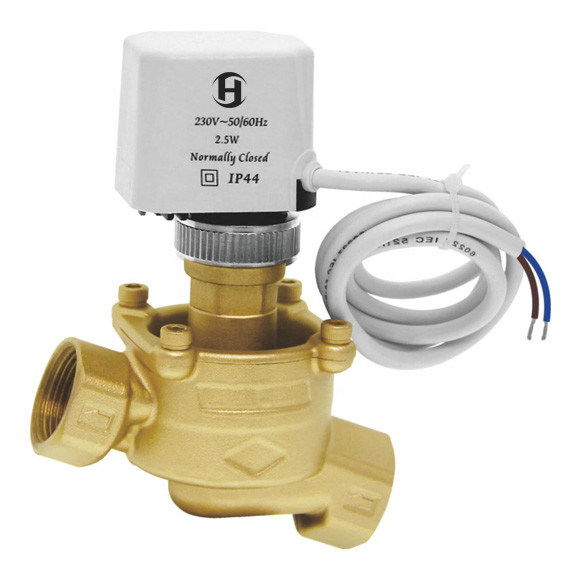

Screw Connection HVAC Motorized Valve Dynamic Balancing 2 way

(Screw Connection Type) Dynamic Balancing Motorized Valve for Temperature Control of HVAC Air-Conditioning

Product Details:

1.Diaphragm Material:EPDM

2. Stem material: stainless steel 06Cr19Ni10

3. Valve body and cover material:C3771

4. Nominal Pressure(PN):1.6MPa

5. Working medium: Water, fluid temperature-10-95°C

6. Travel:3mm

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Introduction:

PHF-DD-L series dynamic balancing motorized valve integrates dynamic balance valve and adjustable valve. It is available for thetemperature

control of HVAC air-conditioning system's terminal equipment, such as air-conditioning cabinet, new fan group and airprocessor. It controls the

water flow and temperature automatically to save energy rationally and realize intelligent management by its intelligent module device.

Features

1. PHF-DD-L dynamic balancing motorized valve adopts ceresin wax propeller.There is no noise during its working. It has spring reset function.

After the power is off, the valve is closed and the running place will be instructed by indication. Screw connectionmakes the installation easier,

faster and more convenient.

2. Straight travel and good interchangeability.

3.KVs discrepancy:≤5%

4. Good stability. Flow value is not influenced by pressure undulation and is not influenced by each other.

5.Energy-saving.t saves more 6-20% energy than traditional system.

6. High efficiency: Greatly shorten the debugging time and high efficiency running.

7. Comfort: Higher temperature control precision,more comfortable than the traditional type.

Specification:
