Product Details:
|
| Power: | 24VAC±10% 50/60Hz | Type: | Motorized Zone Valve |
|---|---|---|---|
| Customized Support: | OEM,ODM | Material: | Engineering Plastics |
| Weight: | 0.514kg | Working Temperature: | <=95 Degree |
| Size: | 6.5mm | Loading Port: | Ningbo/Shanghai |
| High Light: | OEM HVAC Control Parts,HVAC Control Parts 60Hz,Motorized Valve Actuator 6.8mm |
||

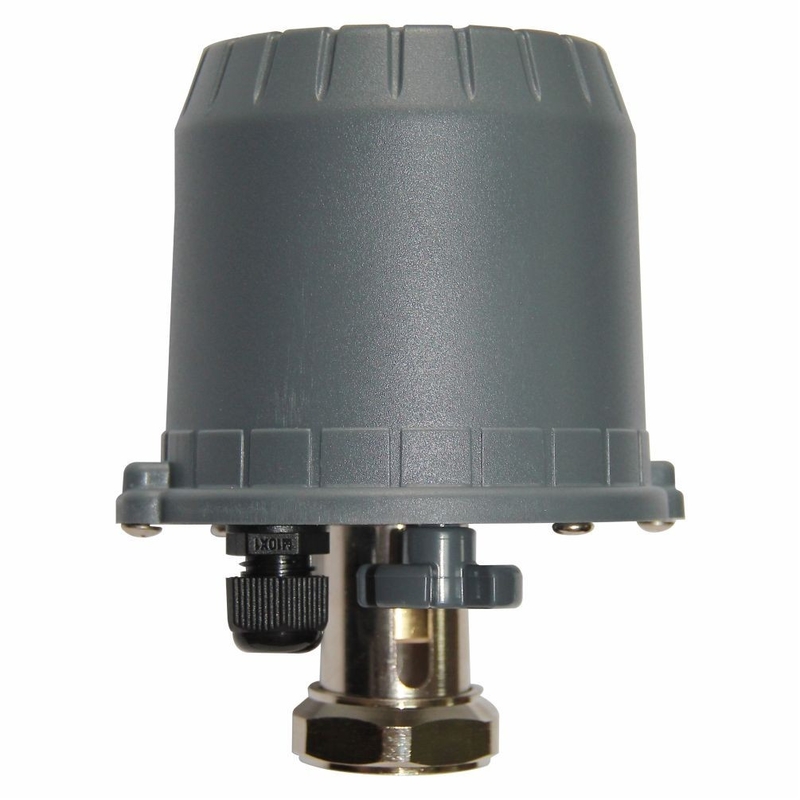

DFQ-JL Series Motorized Valve Actuator HVAC Control Parts
Technical Data
|
Model |
DFQ-JLM |
|
Order No. |
12600 |
|
Power |
24VAC±10% 50/60Hz |
|
Power consumption |
2.8W when frequency is 50Hz ; 2.8W when frequency is 60Hz |
|
Signal input |
0(2)~10V, |
|
Signal feedback |
0(2)~10V |
|
Thrust |
400N |
|
Stroke |
6.8mm |
|
Travel time |
120 seconds when 50Hz |
|
Material |
Gear: formaldehyde, nylon |
|
Lower plate of reducer: galvanized steel |
|
|
Bracket: die-cast aluminum alloy |
|
|
Housing: flame retardant ABS engineering plastics |
|
|
Temperature limitation |
Ambient temperature: - 10 ~ + 50 ℃ storage temperature: - 40 ~ + 50 ℃ |
|
Protection grade |
IP54 |
|
Humidity |
1%-95% RH no dew |
|
Fluid Temperature |
<150℃ |
|
Weight |
0.514kg |
Wiring diagram
