Product Details:
|
| Material: | Plastic | Color: | White |
|---|---|---|---|
| Function: | Room Cooling Or Heating | Shape: | Square |
| Feature: | Energy Saving | Application: | Commercial Building, Residential Building, Hotel |
| Customized Support: | OEM, ODM | Product Warranty: | 1 Year |
| Place Of Original: | China | ||
| High Light: | HVAC Mechanical Room Thermostat,Smart Mechanical Room Thermostat,mechanical ac thermostat 260V |
||

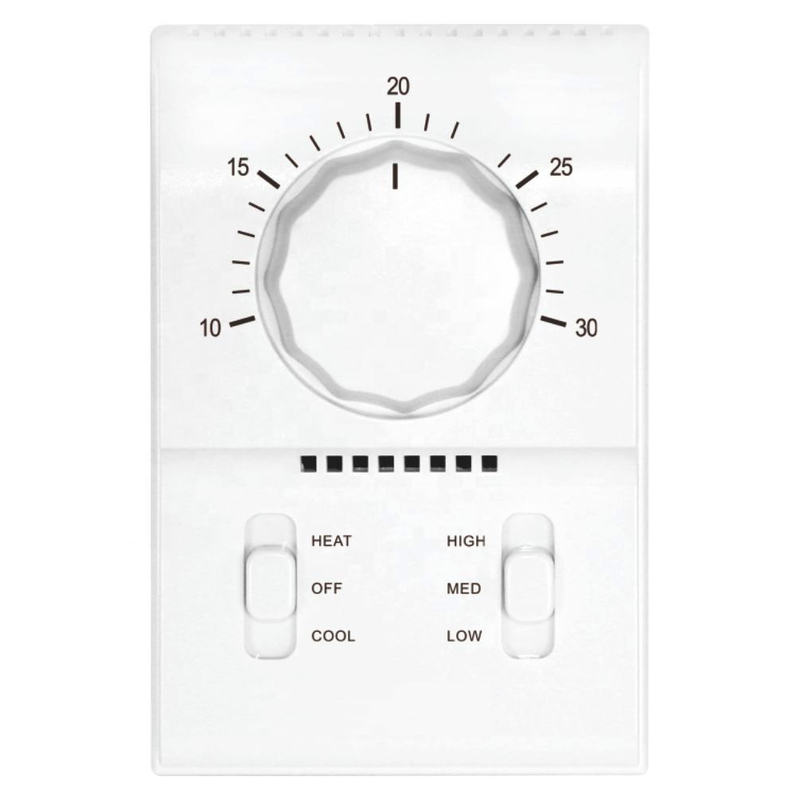

HVAC Smart Mechanical Thermostat for Room Air Condition in Commercial Building, Residential Building, Hotel
Product Details:
Model Number: WKQ-J01A , WKQ-J01B
Certificate: ISO9001
Usage: HAVC System
Voltage: 90-260V
Installation: Wall Mounted Installation
Power Supply: 95~240VAC
Highlight: Energy Saving, Simple operation
Loading port & Delivery
Loading Port: Ningbo/Shanghai
Delivery Support: By Land, by Sea or by Air
Product Description
| Band Name | Hengxiang | Lead connection | combined terminal/suitable for maximum 1.5 mm wire |
| Temperature control range | 10-30℃ | Cover Material | Flame-retardant engineering plastic,milky white |
| Control Percision | ±0.8℃,when it is 20℃ | Thermostat contact life | ≥200000 times when it is 220V |
| Temperature sensing element | precise metal monopole inflated film box | Toggle switch life | no less than 20000 times |
| Voltage Rating | 220VAC±10%50/60Hz | Working Environment | 0-50℃ 10-90%RH, no dew |
| Current Rating | <6A(Resistive Load)<2A(Inductive) | Storing Temperature | -40℃~+70℃ |
Functions:
1, It can be used in commercial, industrial and civil construction, and can control the fan coil of center air-condition
endmost equipment, motorized valve and damper.
2, It is used for keeping the temperature constant according to your operation. All switches are toggle
Matching recommendation: DQF series motorised ball valve.
Installation Notice:
1. The thermostat should be vertically installed on the indoor wall. The distance to the floor must be about 1.5m high to make sure that the thermostat can get enough airflow.
2. There must be no heat source and direct sunlight on the thermostat in the room.
3.Firstly loose the screw of the cover and remove it. Secondly pass the wire through the long hole which is on the upper left side of the base plate.Thirdly connect and fasten the combined terminal. Please do not dismantle the adjusting button during the operation
4.Pass the wire through the square hole which is on the upper right side of the base plate. And connect and fasten the wire according to the wiring diagram
5. Fasten the base plate to the junction box with the matching screws.
6.Put the switch and it's plate to the bottom( marked COOL,3), install the coverMake sure all the parts are in the right place.Then tighten all the
screews.
7. The matching terminal junction box is built-in type. Its size is 86x96x32
