Product Details:
|
| Color: | Silver | Type: | Refrigerator Parts |
|---|---|---|---|
| Power Source: | Electric | Voltage: | 250 VAC |
| Electric Strength: | 1800V/1min | Currents: | 5Amps/10Amps |
| Operating Temperature: | Open8 °C Colse:-4 °C | Warranty: | 1 Year |
| Loading Port: | Shanghai Or Ningbo | Delivery Term: | By Sea Or By Air |
| Package: | 45*35*23CM 500PCS/CTN | Package Weight: | GW:13KGS NW:12KGS |
| High Light: | 10Amps Refrigerator Appliance Parts,Bakelite Refrigerator Appliance Parts,Defrost Bimetal Temperature Control |
||

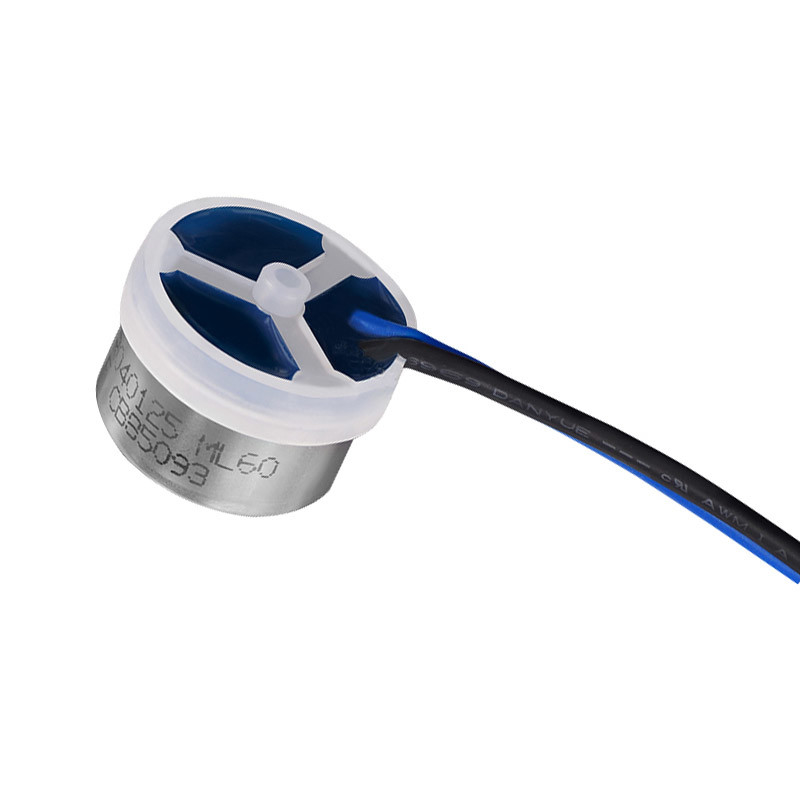

Defrost Sensor and Bimetal Thermostat Sensor for Refrigerator, Silver Stainless Bakelite Material Currents 5Amps/10Amps
Product Description
The series of 1/2" bimetal temperature control offers reliability in a compact, versatile, cost-effective design. The snap action of the bimetal disc provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to I5 amps at 120VAC and 10 amps at 250VAC (10,000 cycles). A variety of terminal and mounting configurations are available for maximum design flexibility. The quality, reliability, affordability, versatility and world-wide agency approvals of this Series make the thermostat for a wide variety of temperature control applications.
Product Info
| ltem NO | PL005 ML60(04572) |
| Use | Defrost/Temperature control/Protection |
| Appliance | Refrigerators, Freezer |
| Reset type | Automatic |
| Base material | Stainless, Bakelite |
| Amperage | 3A/6A/10A/25A |
| 6Max. Operating Temperature | 60°C |
| Differential | According to the requirement |
| Min. Diff | 8°C |
| Tolerance | Refer to the regulation |
| Cold-resistant Temperature |
-30°C |
| Limit of the tolerance(OFF) | ±3°C |
| Limit of the tolerance(ON) | ±3°C |
| Contact material | Silver |
| Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
| Insulation Resistance |
With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
| Resistance Between Terminals |
Below 50mW |
| Temperature characteristics | Normal close, Normal open |
| Maximum ambient temperature |
90°C |
| Diameter of bimetal disc |
F12.8mm(1/2″) |
| Line | Color: white/brown/yellow/blue Length: customized |
Variable temperature area sensor:
Temperature sensor: Use for displaying the temperature and control of the variable temperature room (the temperature in this area is generally between -7 degrees to 5 degrees)
Defrost sensor: Temperature sensor generally disconnected at normal temperature, closed below -7 °C ! The defrost heater is electrified to heat up and defrost the evaporator! (In a refrigerator, this sensor must be used with a fuse)
Ice temperature sensor: Temperature sensor apply to display the temperature of the ice temperature area Refrigeration evaporator sensor: temperature sensor, used to control the temperature of the refrigerator compartment.
