Thermal Fridge Spare Parts Defrost Sensor Customized With Fuse

Thermal Fridge Spare Parts Defrost Sensor Customized  With Fuse

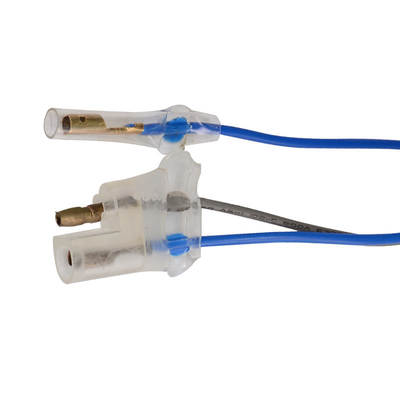

Large Image :  Thermal Fridge Spare Parts Defrost Sensor Customized With Fuse

Product Details:
Place of Origin: China
Brand Name: HengXiang
Certification: CE
Model Number: ST007
Payment & Shipping Terms:
Minimum Order Quantity: 300 PCS
Price: Negotiable
Packaging Details: Cartons
Delivery Time: 30 Working days
Payment Terms: T/T
Supply Ability: 50000PCS Per Week

Thermal Fridge Spare Parts Defrost Sensor Customized With Fuse

Description
Material: Welding Vinyl Tube Sealing Type: Refrigerator Parts
Color: Blue, White Power Source: Electric
Voltage: 250 VAC Feature: Snap-Action Automatic
Life Cycle:: 100,000 Cycle Action Temperature Range: -30°C~90°C
Warranty: 1 Year Loading Port: Shanghai Or Ningbo
Delivery Term: By Sea Or By Air Electric Rating: 250V 5A
High Light:

Thermal fridge spare parts

,

Customized fridge spare parts

,

Thermal Fridge Defrost Sensor

Defrost Sensor and Thermal Fridge Spare Parts Defrost Thermostat with fuse for Refrigerator

Product Description



The Series 1/2 "(12.7mm) bimetal defrosting section thermostat is used for the temperature control of refrigerators and air conditioners, as well as for the automatic temperature control of dehumidifiers and refrigerators heating and defrosting and the safe arrangement of system temperature limit. Structure features: resin seal, electrical parts completely sealed, easy installation, moisture-proof, moisture-proof, etc.


Main Technical Specification:
Action Feature: Single Cutter,, Single Throw(SPST)
Electric Rating: 250VAC SA
Insulation Resistance:≥10M2
Action Temperature Range:-30℃~90℃





Product Info



ltem NO ST007
Use Defrost/Temperature control/Protection
Appliance refrigerators, freezer
Reset type Automatic
Base material bakelite
Amperage 3A/6A/10A/25A
Max. Operating Temperature 90°C
Differential According to the requirement
Min. Diff 8°C
Tolerance Refer to the regulation
Cold-resistant
Temperature
-30°C
Limit of the tolerance(OFF) ±3°C
Limit of the tolerance(ON) ±3°C
Contact material Silver
Dielectric Strength Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC
current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.
Insulation
Resistance
With a DC 500V megger, borne DC 500V, the tested value is over 10MW.
Resistance
Between Terminals
Below 50mW
Temperature characteristics Normal close, Normal open
Maximum
ambient
temperature
90°C
Diameter of
bimetal disc
F12.7mm(1/2″)
Line Color: Customized Length: Customized







Variable Temperature Sensor:



Temperature sensor: Use for displaying the temperature and control of the variable temperature room (the temperature in this area is generally between -7 degrees to 5 degrees)



Defrost sensor: Temperature sensor generally disconnected at normal temperature, closed below -7 °C ! The defrost heater is electrified to heat up and defrost the evaporator! (In a refrigerator, this sensor must be used with a fuse)



Ice temperature sensor: Temperature sensor apply to display the temperature of the ice temperature area Refrigeration evaporator sensor: temperature sensor, used to control the temperature of the refrigerator compartment.

Thermal Fridge Spare Parts Defrost Sensor Customized  With Fuse 0

Thermal Fridge Spare Parts Defrost Sensor Customized  With Fuse 1



Packaging & Delivery

Single package size: 20X10X5 cm

Single gross weight: 0.500 kg

Package:45*35*30CM 500PCS/CTN GW:16KGS NW:15KGS



Thermal Fridge Spare Parts Defrost Sensor Customized  With Fuse 2
