Product Details:
|
| Material: | Stainless Steel | Color: | Dark Blue |
|---|---|---|---|
| Type: | Filter Drier For Refrigeration | Application: | Commercial Refrigerator & Freezer |
| Warranty: | 1 Year | Loading Port: | Ningbo Or Shanghai |
| Delivery Term: | By Air Or By Sea | ||
| High Light: | CE Refrigerator Filter Drier,SEG Refrigerator Filter Drier,Stainless Steel Sight Glass Filter Drier |
||

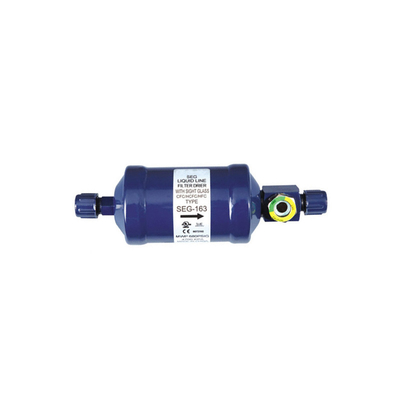

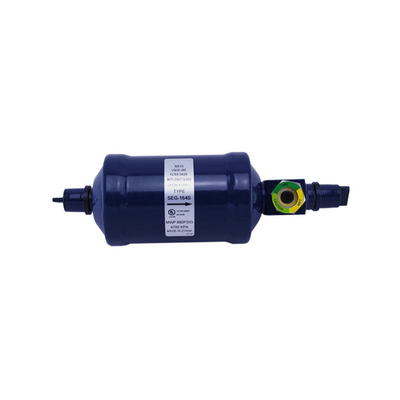

Filter Drier With Sight Glass for Refrigeration SEG Series
Product Introduction:
The SEG series liquid line filter drier/sight glass combination is a liquid line filter drier with a sight glass brazed directly to the outlet side of the filter drier. The filter drier is designed with 3A molecular sieve desiccant for excellent moisture adsorpiton with CFC, HCFC and HFC refrigerants. The filter media will remove small particles down to 10 microns in size from the refrigerant to help prevent plugging prifices and tubes. The pre-assembled combination reduces the amount of field brazing required, saving both time and reducing the potential for leaks. This sight giass allowa the technician to see the refrigerant in its’ current state, helping to identify poorly charged sysytems with poor airflow across the condenser coil or systems, with unusual pressure drop causing the refrigerant to “flash” and prooduce bubbles in the liquid line. The sight glass has a built-in moisture indicatoe which provides visual color change from green to yellow in response to the moisture content of the refrigerant, indicating the serve of change need.
The SEG filter drier/sight glass combination is available in flare or solder, inch or mm sizes, making it possible to meet a wide variety of system requirements. Other connection styles are available on special request.
Feature:
1.Filter drier and sight glass with moisture indicator in one compact, easy-to-install unit
2.Less expensive than purchasing both units separately
3.Little installing time
4.Fewer connections reduce the opportunity for leaks
5.Compacted gasket, spring loaded design
6.Excellent moisture removal capacity
7.Low pressure drop
8.filtration down to 10 microns
9.Large wrench flats on flare fittings
10.For a variety of refrigerant R-134A,R-404A, R-407C, R-410A, R-500, R-502, R-507
11.Maximum working pressure:4.70Mpa/680Psig, with the UL and CE certification
| Model No. | Connection (IN) | Volume (CU.IN) | Dimension (IN) | |||
| Flare (SAE) | Solder (ODF) | A (IN) | B (IN) | C (IN) | ||
| SEG-162 | 1/4 | 16 | 7.53 | 2.5 | ||
| SEG-163 | 3/8 | 16 | 7.91 | |||
| SEG-163S | 3/8 | 16 | 7.65 | 6.27 | ||
| SEG-164 | 1/2 | 16 | 8.06 | |||
| SEG-164S | 1/2 | 16 | 7.71 | 6.27 | ||
| SEG-165 | 5/8 | 16 | 8.31 | |||
| SEG-165S | 5/8 | 16 | 8.04 | 6.27 | ||
| SEG-303 | 3/8 | 30 | 10.74 | |||
| SEG-304 | 1/2 | 30 | 10.62 | |||
| SEG-304S | 1/2 | 30 | 10.27 | 8.83 | ||
| SEG-305S | 5/8 | 30 | 10.6 | 8.83 | ||
Q1: Can you provide sample?
A1: Yes, we can send the sample for free but not including the sample freight.
Q2: What kind of Certificate do you have?
A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.
Q3: How are orders packed?
A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.
Q4: How long is the warranty of your products?
A4: We provide one year after-sale guarantee.
Q5: Can you produce the products labeled with the client's brand?
A5: OEM, ODM are supported.
Q6: What kind of payment terms do you accept?
A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
