Product Details:
|
| Material: | Stainless Steel | Color: | Grey |
|---|---|---|---|
| Type: | Filter Drier For Refrigeration | Application: | Commercial Refrigerator & Freezer |
| Warranty: | 1 Year | Loading Port: | Ningbo Or Shanghai |
| Delivery Term: | By Air Or By Sea | ||
| High Light: | Grey Freezer Filter Drier,Freezer Filter Drier,Copper Filter Drier For Refrigerator |
||

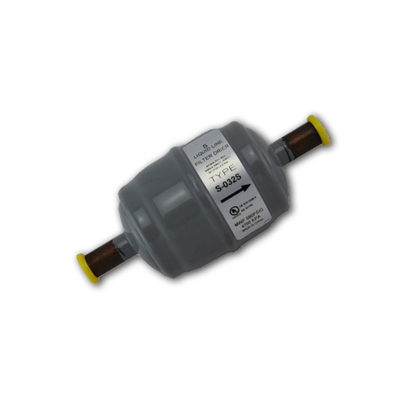

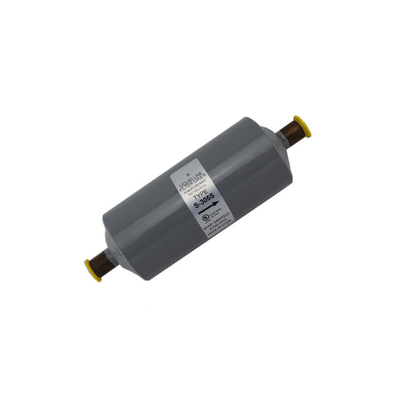

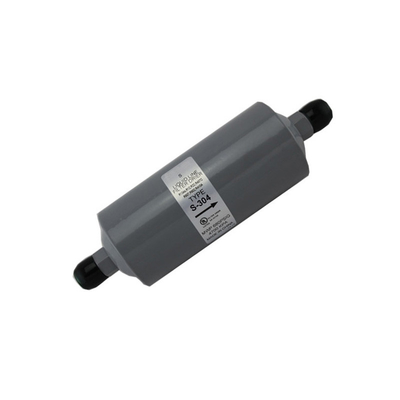

Molecular Sieve Filter Drier for Refrigeration S Series
Product Introduction:
| S series Liquid Line | connection(in) | Volume of Desiccant(m 2 ) |
Total length (mm) A | Solder Socket Depth (mm) |
Body Diameter (mm) |
||
| SAE | ODF | SAE | ODF | ||||
| S-032 | S-032S | 1/4 | 49 | 106 | 97 | 10 | 44 |
| S-033 | S-033S | 3/8 | 119 | 99 | 11 | ||
| S-052 | S-052S | 1/4 | 82 | 121 | 106 | 10 | 62 |
| S-053 | S-053S | 3/8 | 132 | 109 | 11 | ||
| S-082 | S-082S | 1/4 | 147 | 143 | 130 | 10 | 67 |
| S-083 | S-083S | 3/8 | 154 | 133 | 11 | ||
| S-084 | S-084S | 1/2 | 160 | 138 | 13 | ||
| S-162 | S-162S | 1/4 | 262 | 159 | 146 | 10 | 76 |
| S-163 | S-163S | 3/8 | 171 | 149 | 11 | ||
| S-164 | S-164S | 1/2 | 176 | 152 | 13 | ||
| S-165 | S-165S | 5/8 | 184 | 160 | 16 | ||
| - | S-167S | 7/8 | - | 176 | 19 | ||
| S-303 | S-303S | 3/8 | 492 | 246 | 226 | 11 | 76 |
| S-304 | S-304S | 1/2 | 251 | 229 | 13 | ||
| S-305 | S-305S | 5/8 | 259 | 235 | 16 | ||
| - | S-306S | 3/4 | - | 245 | 16 | ||
| - | S-307S | 7/8 | - | 249 | 19 | ||
| - | S-309S | 1-1/8 | - | 248 | 24 | ||
FAQ:
Q1: Can you provide sample?
A1: Yes, we can send the sample for free but not including the sample freight.
Q2: What kind of Certificate do you have?
A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.
Q3: How are orders packed?
A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.
Q4: How long is the warranty of your products?
A4: We provide one year after-sale guarantee.
Q5: Can you produce the products labeled with the client's brand?
A5: OEM, ODM are supported.
Q6: What kind of payment terms do you accept?
A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
