Product Details:
|
| After-sales Service Provided: | Return And Replacement | Application: | Commercial,Household |
|---|---|---|---|
| Condition: | New | Certification: | CE |
| Usage: | Refrigerator | Warranty: | One Year |
| Type: | Refrigerator Parts,refrigeration Spare Parts | Power Source: | Gas |
| Brand Name: | OEM | Item Name: | Refrigeration Copper Filter Drier |
| Material: | Copper | ||
| High Light: | Multi Size Refrigerator Filter Drier,Gas Refrigerator Filter Drier,Gas copper filter dryer |
||

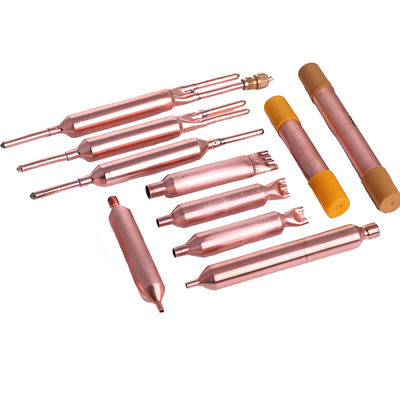

Multi-size high quality refrigerator copper filter dryer
Body shell:Cu-DHP
Molecular sieves :100% XH-9
Screen :200 mesh
Availability :Compatible with all refrigerants
Wall thickness 5-20g:0.40mm;>20g:0.50mm
Ends: Sealed with plastic cap/plug
Inlet: 6.5mm
Outlet: 2.5mm
Note: all sizes are HENGXIANG standard, other size can be made on request
PRODUCT DESCRIPTION
| Part No. | Size(φ“L) | Inlet(Pc*φ) | Outlet(Pc“φ) |
| HXACF02 | 19mm*105mm | 1*1/4" | 1*1/8" |
| HXACF03 | 19mm*105mm | 1*1/4" | 2*1/8* |
| HXACF04 | 19mm*105mm | 1"1/4" | 3*1/8" |
| HXACF05 | 19mm*105mm | 1*1/4" | 4*1/8" |
| Part No | Molec. Sieve | Filter Body Sizos | Connection | |||
| (Gr.) | (mm) | l(mm) | L(mm) | A(mm) | B(mm) | |
| HX-SFD10 | 10g | 19 | 105 | 205 | 6.35/2.5 | 6.35 |
| HX-SFD15 | 15g | 19 | 125 | 225 | 6.35/2.5 | 6.35 |
| HX-SFD20 | 20g | 24 | 120 | 220 | 6.35/2.5 | 6.35 |
| HX-SFD25 | 25g | 24 | 140 | 240 | 6.35/3.1 | 6.35 |
| HX-SFD30 | 30g | 24 | 150 | 275 | 6.35/3.1 | 6.35 |
| HX-SFD50 | 50g | 30 | 168 | 315 | 6.35/3.1 | 6.35 |
Packing & Delivery
1. 10pcs/plastic bag, 500pcs in a strong carton box.
2. 5pcs/blister card, 500pcs in a strong carton box.
3. Aluminum bag packing.
