Product Details:
|
| Material: | Stainless Steel | Color: | Black |
|---|---|---|---|
| Type: | Filter Drier For Refrigeration | Application: | Commercial Refrigerator & Freezer |
| Warranty: | 1 Year | Loading Port: | Ningbo Or Shanghai |
| Delivery Term: | By Air Or By Sea | ||
| High Light: | Black Refrigerator Filter Drier,SDML Refrigerator Filter Drier,Molecular Sieve liquid line drier |
||

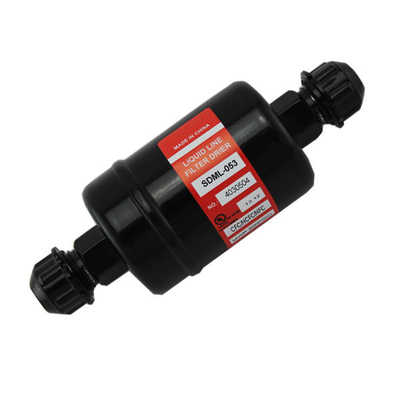

Molecular Sieve Liquid Line Filter Drier for Refrigeration SDML Series
Product Introduction:
The Product use 100% 3A molecular sieve core in the filter drier, with strong drying capability to reduce the risk of hydrolyze acid reaction. It can be uesd with HFC refrigerant (R134A, R404A, R410A)with POE and PAG oil together. This product is also an additive, compatible without consuming oil.
Feature:
1.Additives without consuming oil
2.Joint type: ODF and SAE
3.Corrosive resistance molded
4.Maximum working pressure: 4.70Mpa/680Psig, with the UL ans CE certification
| SDML Solid Core Liquid Line Filter Drier | |||||||||||
| Type | Connection | Liquid capacity(tons) | Drying capacity(ibs) | Desiccant (cu.in) |
A(mm) | B(mm) | C(mm) | ||||
| R134a | R404a /R507 |
R22 /R407C /R410A |
R134a /R507 |
R404A | R22 /R407C /R410A |
||||||
| SDML-052 | 1/4SAE | 2 | 1.5 | 2 | 19 | 28.5 | 17.5 | 5 | 121 | ||
| SDML-052S | 1/4ODF | 110.4 | 75 | ||||||||
| SDML-053 | 3/8SAE | 5 | 4 | 5.5 | 123 | ||||||
| SDML-053S | 3/8ODF | 114.4 | 75 | ||||||||
| SDML-082 | 1/4SAE | 2 | 1.5 | 2 | 27.5 | 44 | 27.5 | 8 | 147 | 76 |
|
| SDML-082S | 1/4ODF | 136.4 | 101 | ||||||||
| SDML-083 | 3/8SAE | 5.5 | 4 | 6 | 158 | ||||||
| SDML-083S | 3/8ODF | 138.4 | 101 | ||||||||
| SDML-162 | 1/4SAE | 2 | 1.5 | 2 | 59.5 | 96 | 59.5 | 16 | 163 | ||
| SDML-162S | 1/4ODF | 151.6 | 146 | ||||||||
| SDML-163 | 3/8SAE | 6 | 4.5 | 6.5 | 174 | ||||||
| SDML-163S | 3/8ODF | 158.6 | 146 | ||||||||
| SDML-164 | 1/2SAE | 8.5 | 6 | 9 | 178 | ||||||
