Product Details:
|
| Application: | Commercial,household | Afte-sales Service Provided: | Free Spare Parts,onsite Installation |
|---|---|---|---|
| Product Name: | Roll Bond Type Aluminum Evaporator | Thickness Of Aluminium Plate: | 1.8-3.0mm |
| Usage: | Refrigetor | Warranty: | One Year |
| Type: | Refrigerator Parts | Power Source: | Gas |
| Condition: | New | Material: | Aluminum Plate |
| Surface: | Powder Painting | Structure: | Single Side Or Double Side |
| High Light: | Aluminium Roll Plate Type Evaporator,Bond Plate Type Evaporator,Refrigerator Evaporator Plate 3.0mm |
||

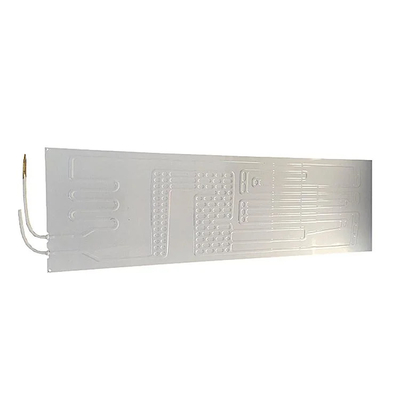

Aluminium Roll Bond Evaporator plate for refrigerator
Product Description:
Commercial Refrigerator Shell And Tube Chest Freezer Roll Bond Type Aluminum Evaporator
No frost roll bond evaporator,refrigerator roll bond evaporator,roll bond evaporator.
If you are interested in our products, please don't hesitate to contact me! We can produce according to your drawings or your samples!
| No frost(oil) bond evaporator, refrigerator roll bond evaporator, roll bond evaporator. | |
| Raw | Al-plate:finished products thickness:1.12.0mm, |
| material | raw material Al plate thickness:1.42.5mm |
| Double side rollbond evaporator. | |
| Structure | single side rollbond evaporator, |
| part single side rollbond evaporator | |
| Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, | |
| Key process | Punching Folding and shaping Capillary connecting, Assembly weirding, Leakage Test, cleaning and |
| drying, Coating, Curling, Inspection, Packing | |
| Technical | 1) Size:width 590(max), length 2050(max) |
| Standards | 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design |
| and produce different models of roll bond evaporator. | |
| 1) Surface treated with powder painting to prevent the corrosion | |
| Performance 2) inner cleanness can meet the requirement of R134a&CFC cooling system. | |
| 3) Can satisfy the cooling capability requirements. | |
| Capacity3.5 million sets per year(10000 sets per day) | |
| R134a Cooling System Tube Inside standards | ||
| Residual moisture | s5/100cm3 | |
| Residual impurity | s1/100cm3 | |
| Residual mineral oil | s100/100cm3 | |
| Residual chlorine | <5vloppm | |
| Residual paraffin | ≤3/ | |
| Biggest single impurity | so.5mm | |
| Specification of coating | ||
| Coating thickness | thickness of coating4090m | |
| Hardness of coating | 22H | |
| Impact of coating | 50cm? kg/cm impact, no crack | |
| Adhesion of coating | ztwo grade | |
| Flexibility of coating | Around R=3D bend 180?, no crack or no fall off | |
| Color tolerance of powder | ||
FAQ
1. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
2. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
3. Q: What payment methods your company accept?
A: We accept T/T.
4. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
5. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
