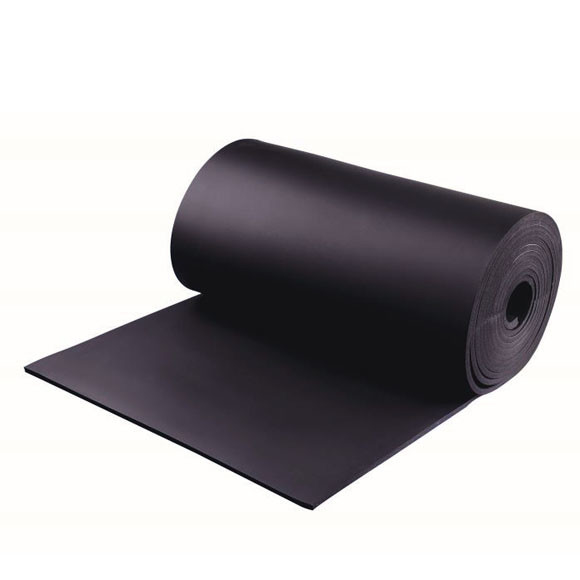

Thermal AC Spare Part Adhesive Foam Insulation Board For Refrigeration

Air Conditioner Rubber Foam And Plastic Thermal Insulation Adhesive Board For Refrigeration

Description

The surface features of the insulation material can noticeably influence the insulation-layer thickness needed to prevent condensation. This is because the material surface itself determines its thermal exchange capability with its surroundings. Objects with dark and rough surface are generally better able to absorb heat and increase the surface temperature than their lighter and smoother counterparts. Dark, rough and low-reflectance materials are beneficial for anti-condensation control, and the anti-condensation thickness needed is smaller. The parameter used to describe this surface feature is named surface heat-transfer coefficient. Since the micro-relief foaming technique which increases surface roughness regularly is adopted, the effective surface heat-transfer coefficient of HX-Cool boards is higher than that of traditional products, and their ability to prevent surface condensation is higher.

Application

Apply to Refrigeration, cooling & heating system, apply to different shapes of areas.

flexible elastomeric foam tube used to conserve energy and prevent condensation on piping applications. The tube closed cell properties create exceptional thermal and acoustic insulation, protect against moisture penetration and provide the best solution for applications within a -280°F to +221°F temperature range.

Heating: Excellent heat insulation performance, greatly reduce heat loss, convenient economy installation.

Ventilation: Also meet the world's most rigorous fire safety standards, greatly improved the safety performance of the materials, applicable to all kinds of ventilation ductwork.

Cooling: High soft degree, easy installation, applicable to the condensate pipes systems, cold media quality system in the fields of the insulation.

Air conditioning: Prevent condensation produce effectively, help air conditioning system to improve efficiency and create a more comfortable environment.

Performance index



Item		Unit	Data scope	Data
surface density		Kg/m³	≤95	46
oxygen index		%	≥32	34.4
Smoke density		/	≤75	28
thermal conductivity	Average temperature::-20ºC	W/(m·K)	≤0.034	0.030
	Average temperature::0ºC	W/(m·K)	≤0.036	0.033
	Average temperature::40ºC	W/(m·K)	≤0.041	0.038
Wet resistance factor	Moisture permeability	G/(m·s·Pa)	≤1.3*10-10	8.7*10-11
	Moisture permeability coefficient	/	≥1.5*102	2.3*103
Vacuum water absorption		%	≤10	3
Compression springback rate Compression ratio 50% Compression time 72 h		%	≥70	89



Techniques



1.Seamless bonding



HX-Cool uses supporting fast-drying solvent YIBA glue, which can ensure a continuous and seamless bonding effect, to conduct bonding at joints and seams. The bonding of YIBA products under correct installation methods can guarantee gas tightness at the joints without extra cover by adhesive tapes. tightness at the joints without extra cover by adhesive tapes.



2.Formaldehyde free



Formaldehyde is classified as possibly cancerogenic, and authoritative health and safety organizations in many countries have set limits for the maximum exposure amount of it. HX-Cool does not contain nor release formaldehyde, hence making no difference to the interior formaldehyde limitation level.



3. Fiber and dust free



Materials heavy in dust and fiber can induce extra hazards on people’s health; besides, these materials will also aggravate the respiratory environment accompanying the breeding of mould and bacteria. YIBA products are completely fiber- and dust -free, hence they are very suitable for densely-populated areas such as public areas, hospitals and office buildings, etc.



4.Excellent acoustical property



HX-Cool has an impressive sound-absorption property in common noise spectrums; the product can provide a remarkable shock-absorption and shock-isolation performance when applied on pipelines and wind pipes, cutting down the spread of structure-borne sound.
