Product Details:
|
| Material: | Rubber, Rubber Or PE | Thickness: | 6mm(1/4''),9mm(3/8''),13mm(1/2''),19mm(3/4''),25mm(1'') |
|---|---|---|---|
| Shape: | Single Tube, Double Tube | Rated Temperature: | -40℃-105℃ |

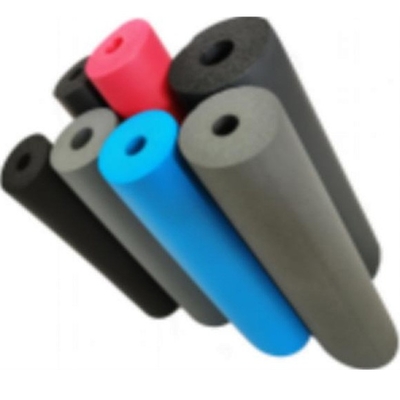

| Reaction To Fire: | Self-Extinguishing,No Dripping | Color: | Black, White, Red, Blue, Green, Etc. |
| Custom: | OXM | ||
| High Light: | Rubber AC Spare Part,Insulation AC Spare Part,Thermal Foam Insulation Pipes |
||

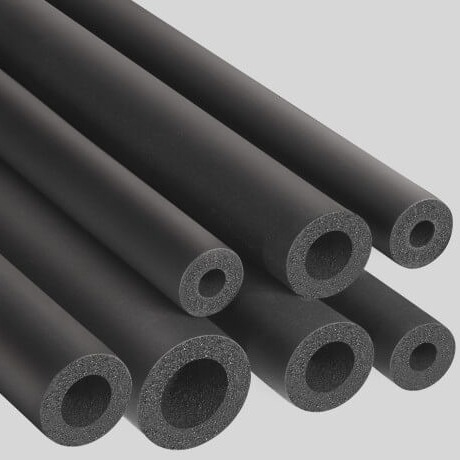

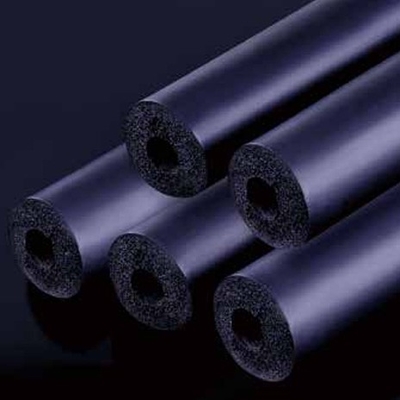

Air Conditioner Spare Part Multiple Sizes Pipework Rubber And Plastic Thermal Foam Pipe Insulation Materials - Pipes
Description
Flexible Cryogenic Insulation Material Armaflex LT/LTD
HX-Cool is a soft closed cell thermal-insulation material which is formed by using rubber and plastic as its main raw material.
It does not contain fiber dust, formaldehyde and working media such as CFC which damage the ozone layer.
HX-Cool is suitable for thermal insulation of all kinds of pipes and equipment with the medium temperature between -50°C and 105°C.
As a high-quality thermal-insulation and energy-conservation material, HX-Cool products, which can fully guarantee the energy-conservation effect of reducing cold-and-heat loss, are currently being widely used in water pipes and air pipes of central air conditioning systems, cold-producing and heat-producing devices, thermal-insulation projects of hot-water pipelines and process pipelines.
In respect of preventing pipeline frosting, reducing the risk of pipeline erosion, and ensuring “gas tightness” of the whole
thermal insulation system,

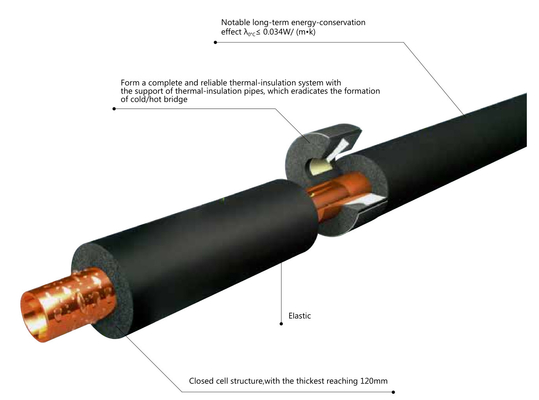

Profiled Drawing
HX-Cool flexible thermal insulation materials can effectively prevent condensation. Its low thermal conductivity coefficient and high resistance to steam penetration can save energy consumption and resist steam penetration.Thanks to numerous independent closed bubble structures,
HX-Cool fine foaming forms a continuous barrier to prevent steam penetration, resulting in continuous moisture proofing in the direction of thickness. The combination of quality raw materials and leading production technology gives HX-Cool excellent thermal insulation and fireproof performance.
Advantage
1.Low thermal conductivity
HX-Cool has a relatively low thermal conductivity, which is ≤ 0.034W/ (m•K) at 0 °C. Its surface heat emission coefficient is high, reaching 9W/ (m²•K). Therefore, in order to achieve the same insulation effect under the same surrounding condition, the utilization thickness of HX-Cool is at least one half thinner than that of traditional insulation materials.
Meanwhile, since HX-Cool is highly capable of resisting the permeation of water vapor, it can maintain stable heat conductivity in the long run; the material has a long service life, notable energy-conservation effect when run on a long-term basis, and a low daily maintenance fee.
2.Easy and quick installation
Soft texture and convenient installation.
◎ The brand-new 1.2m board breadth can reduce noticeably material loss, the number of bonding
◎ An installation template is also printed on the HX-Cool packaging carton, which assists in the on-site prefabrication of various insulation units.
◎ HX-Cool insulation systems which are bonded correctly with HX-Cool special glue can ensure the gas tightness of the system, with beautiful and even appearance, and extra protection of adhesive tapes on the seams is not needed accessoriesStainless steel straps and other accessories
3.High damp-resistance factor
HX-Cool has a higher damp-resistance factor (u ≥ 10,000),
Improved group-foaming structure
After adopting the “Nano—Foaming Technology”, the forming of the product is more even and thorough, and the closed cell smaller and uniform, which helps to restrain the cross-ventilation caused by temperature gradients inside the closed cell and hence further reduces the product’s heat conductivity. The independent, even and small closed cell improve the intensity of the closed cell structure.
The most important property indicators have gained further breakthroughs:
Damp-resistance factor μ ≥ 10,000,
Heat conductivity λ ≤ 0.034W/(m·,K), 0°C
4.Good fireproof property
Tech.
Customized Solutions
HX-Cool Company can provide customized insulation solutions for large-size pipeline insulation and pipelines which need bigger insulation
thicknesses. These solutions enable the installations to go faster and easier.
For pipelines with a diameter exceeding 200mm, HX-Cool Company can offer precut HX-Cool board products which match the pipeline perimeter. When multi-layer insulation is needed, HX-Cool can provide precut insulation board materials catering to the different size of each layer.
When inner diameter is more than 108mm,using sheet;when thickness is more than 30mm,using two layer.
| Tube series | |||||||
|
Nominal Insulation Size ID |
Nominal 6mm wall |
Nominal 9mm wall |
Nominal 13mm wall |
Nominal 19mm wall |
Nominal 25mm wall |
||
| mm | inch | No of Pcs Per Ctn | |||||
| 6 | 1/4 | 280 | 168 | 180 | 90 | 50 | 35 |
| 10 | 3/8 | 180 | 120 | 140 | 80 | 45 | 32 |
| 13 | 1/2 | 160 | 100 | 120 | 72 | 42 | 28 |
| 16 | 5/8 | 120 | 90 | 90 | 56 | 36 | 25 |
| 19 | 3/4 | 100 | 72 | 80 | 49 | 30 | 25 |
| 22 | 7/8 | 90 | 65 | 65 | 45 | 28 | 21 |
| 25 | 1 | 80 | 49 | 60 | 42 | 21 | |
| 28 | 1-1/8 | 70 | 49 | 50 | 36 | 25 | 20 |
| 32 | 1-1/4 | 60 | 42 | 45 | 30 | 25 | 20 |
| 35 | 1-3/8 | 60 | 36 | 42 | 30 | 20 | 15 |
| 38 | 1-1/2 | 55 | 34 | 36 | 30 | 20 | 15 |
| 42 | 1-5/8 | 50 | 30 | 30 | 25 | 16 | 12 |
| 48 | 1-7/8 | 28 | 28 | 25 | 16 | 12 | |
| 51 | 2 | 24 | 24 | 20 | 15 | 10 | |
| 54 | 2-1/8 | 30 | 20 | 20 | 20 | 15 | 10 |
| 57 | 2-1/4 | 20 | 20 | 15 | 10 | ||
| 60 | 2-3/8 | 20 | 20 | 20 | 15 | 9 | |
| 67 | 2-3/8 | 18 | 18 | 15 | 15 | 8 | |
| 73 | 2-7/8 | 18 | 18 | 13 | 10 | 8 | |
| 76 | 3 | 18 | 18 | 12 | 9 | 8 | |
| 80 | 3-1/8 | 12 | 8 | 8 | |||
| 85 | 3-3/8 | 12 | 8 | 8 | |||
| 90 | 3-1/2 | 15 | 18 | 10 | 8 | 8 | |
Standard Carton size:
1.83mlength-1.88×0.38×0.33M (74in×15in×13in) 300BOXES/40HQ
2.00mlength-2.05×0.38×0.33M (81in×15in×13in) 270BOXES/40HQ
1.80mlength-1.835×0.36×0.305M(73in×14.6in×12.3in) 330BOXES/40HQ
