Product Details:
|
| Material: | Cast Iron | Color: | Black |
|---|---|---|---|
| Application: | Refrigeration Parts | Power: | 120W, DC 12/24V |
| Refrigerant:: | R600A | Net Weight: | 9.8kg |
| Voltage: | 12V24V | Loading Port: | Ningbo Or Shanghai |
| High Light: | Solar Power Mini Freezer Compressor,Mini Freezer Compressor Portable,12v Car Refrigerator Compressor |
||

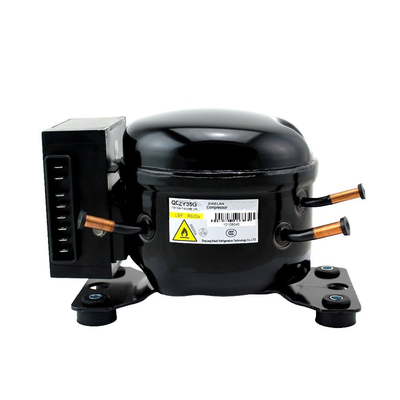

Solar power portable DC R600a 12v 24v mini freezer camping fridge car refrigerator Compressor QDZY35G
QDZY43G, DC series, use R600A refrigerant
1)Voltage application 12V and 24V
2)Cooling type: ST or FAN
3)Application: Low Back Pressure, Middle Back Pressure;
4)Max cooling capacity 95W
5)Suitable for freezer/refrigerator capacity: 70 to 110L.
QDZY50G
Max cooling capacity 108W;
Suitable for freezer/refrigerator capacity: 50L to 200L.
Product Data
| Serial | Model | Displacement (cm3) | Rotate Speed (rpm) | Capacity | COP | EER | Oil charge | Cooling Type | Power Supply | ||
| -23.3ºC (ASHRAE) | |||||||||||
| W | Kcal/h | Btu/h | W/W | Btu/W.h | ml | ||||||
| L | QDZY35G | 3.5 | 2000 | 42.0 | 36.3 | 143.3 | 1.15 | 3.92 | 130 | FC | 12/24V (DC) |
| 2500 | 50.0 | 42.3 | 170.6 | 1.25 | 4.27 | ||||||
| 3000 | 60.0 | 51.8 | 204.7 | 1.35 | 4.61 | ||||||
| 3500 | 72.0 | 62.2 | 245.7 | 1.3 | 4.44 | ||||||
| QDZY43G | 4.3 | 2000 | 49.0 | 42.3 | 167.2 | 1.15 | 3.92 | ||||
| 2500 | 61.0 | 52.7 | 208.1 | 1.25 | 4.27 | ||||||
| 3000 | 76.0 | 65.7 | 259.3 | 1.35 | 4.61 | ||||||
| 3500 | 95.0 | 82.1 | 324.1 | 1.3 | 4.44 | ||||||
| QDZY50G | 5.0 | 2000 | 60.0 | 51.8 | 204.7 | 1.15 | 3.92 | ||||
| 2500 | 72.0 | 62.2 | 245.7 | 1.25 | 4.27 | ||||||
| 3000 | 86.0 | 74.3 | 293.4 | 1.35 | 4.61 | ||||||
| 3500 | 108.0 | 93.3 | 368.5 | 1.3 | 4.44 | ||||||
| QDZY65G | 6.5 | 2000 | 67.0 | 57.9 | 228.6 | 1.15 | 3.92 | ||||
| 2500 | 93.0 | 80.4 | 317.3 | 1.25 | 4.27 | ||||||
| 3000 | 110.0 | 95.0 | 375.3 | 1.35 | 4.61 | ||||||
| 3500 | 131.0 | 113.2 | 447.0 | 1.3 | 4.44 | ||||||
| QDZY75G | 7.5 | 2000 | 91.0 | 78.6 | 310.5 | 1.15 | 3.92 | ||||
| 2500 | 108.0 | 93.3 | 368.5 | 1.25 | 4.27 | ||||||
| 3000 | 130.0 | 112.3 | 443.6 | 1.35 | 4.61 | ||||||
| 3500 | 156.0 | 134.8 | 532.3 | 1.3 | 4.44 | ||||||
Package Details:
1PC/CTN, SIZE 26*16*16/19 CM
100PCS/PLT, SIZE 114*87*90 CM
120PCS/PLT, SIZE 114*87*110 CM
24PLTS/20GP, TOTAL 2640 PCS.
