Product Details:
|
| Product Name: | Compact Ball Valve | Material: | Brass |
|---|---|---|---|
| Color: | Golden Yellow | Medium Temp: | -30degree~+120degree |
| Type: | Air Conditioner Parts | Size: | 1/4"~3-1/8" |
| Customized Support:: | OEM, ODM | Warranty: | 1 Year |
| Loading Port: | Shanghai Or Ningbo | ||
| High Light: | Refrigeration compact ball valve,compact ball valve R22,Brass ball Valve -30degree |
||
Product Features
1,Small fluid resistance, simple structure, small size, light weight, compact and reliable, good sealing performance, convenient operation, quick on/off convenient maintenance, wide range of application.
2.Automatic switching without manual operation.
3.Built-in position indicating device, observe the opening and closing of the valve at any time.
4.With manual adjustment mechanism, allowing manual operation in emergency situations for fast positioning.
5.Full automatic overload protection.
Technical Data
1.Applicable medium:R22,R134aR407C. R410a etc.
2.Applicable medium temperature:-30°~+120℃.
3.Maximum working pressure:42MPa.
4.Applicable environment temperature:-20°C-+60℃C.
Product Specifications:
LQF series (without charging port)
| Order No. | Model No. | Specification | Dimension(mm) | PCS/CTN | |||
| D | H | L | L1 | ||||
| H31028 | LQF-02 | 1/4 | ∅6.35 | 35 | 165 | 7 | 80 |
| H31000 | LQF-03 | 3/8 | ∅9.52 | 35 | 165 | 10 | 80 |
| H31001 | LQF-04 | 1/2 | ∅12.7 | 35 | 165 | 10 | 80 |
| H31002 | LQF-05 | 5/8 | ∅15.88 | 36.8 | 165 | 14 | 30 |
| H31003 | LQF-06 | 3/4 | ∅19.1 | 42 | 180 | 15 | 30 |
| H31004 | LQF-07 | 7/8 | ∅22.3 | 42.7 | 200 | 16 | 30 |
| H31005 | LQF-08 | 1 | ∅25.4 | 42.7 | 200 | 16 | 30 |
| H31006 | LQF-09 | 1-1/8 | ∅28.6 | 54 | 215 | 20 | 15 |
| H31007 | LQF-10 | 1-1/4 | ∅31.8 | 54 | 215 | 20 | 15 |
| H31008 | LQF-11 | 1-3/8 | ∅34.9 | 58.5 | 256 | 24 | 12 |
| H31009 | LQF-13 | 1-5/8 | ∅41.3 | 68 | 288 | 25 | 6 |
| H31010 | LQF-17 | 2-1/8 | ∅54 | 77.6 | 322 | 33 | 4 |
| H31011 | LQF-21 | 2-5/8 | ∅66.7 | 84.5 | 377 | 35 | 3 |
| H31012 | LQF-24 | 3 | ∅76.2 | 84.5 | 379 | 36 | 3 |
| H31013 | LQF-25 | 3-1/8 | ∅79.4 | 84.5 | 377 | 36 | 3 |

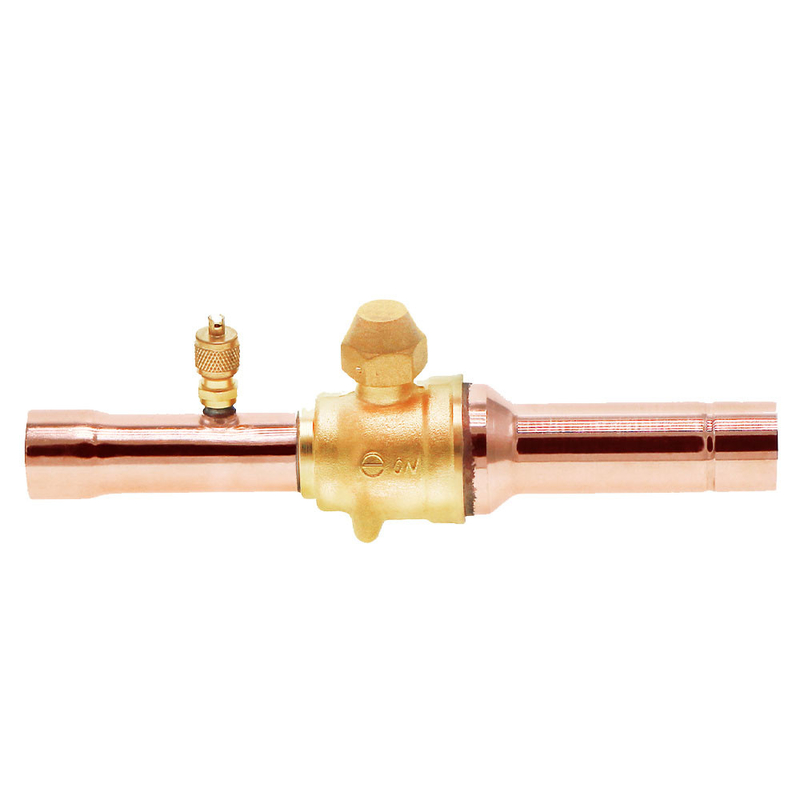

LQF-A with charging port
| Order No. | Model No. | Specification | Dimension(mm) | PCS/DTN | ||||
| D | H | L | L1 | L2 | ||||
| H31014 | LQF-03A | 3/8 | ∅9.52 | 35 | 165 | 10 | 34.5 | 80 |
| H31015 | LQF-04A | 1/2 | ∅12.7 | 35 | 165 | 10 | 37 | 80 |
| H31016 | LQF-05A | 5/8 | ∅15.88 | 36.8 | 165 | 14 | 37 | 30 |
| H31017 | LQF-06A | 3/4 | ∅19.1 | 42 | 180 | 15 | 40.5 | 30 |
| H31018 | LQF-07A | 7/8 | ∅22.3 | 42.7 | 200 | 16 | 51 | 30 |
| H31019 | LQF-08A | 1 | ∅25.4 | 42.7 | 200 | 16 | 51 | 30 |
| H31020 | LQF-09A | 1-1/8 | ∅28.6 | 54 | 215 | 20 | 52 | 15 |
| H31021 | LQF-10A | 1-1/4 | ∅31.8 | 54 | 215 | 20 | 52 | 15 |
| H31022 | LQF-11A | 1-3/8 | ∅34.9 | 58.5 | 256 | 24 | 67 | 12 |
| H31023 | LQF-13A | 1-5/8 | ∅41.3 | 68 | 288 | 25 | 77 | 6 |
| H31024 | LQF-17A | 2-1/8 | ∅54 | 77.6 | 322 | 33 | 78 | 4 |
| H31025 | LQF-21A | 2-5/8 | ∅66.7 | 84.5 | 377 | 35 | 108 | 3 |
| H31026 | LQF-24A | 3 | ∅76.2 | 84.5 | 379 | 36 | 95 | 3 |
| H31027 | LQF-25A | 3-1/8 | ∅79.4 | 84.5 | 377 | 36 | 96 | 3 |
Q1: Can you provide sample?
A1: Yes, we can send the sample for free but not pay the sample freight.
Q2: What kind of Certificate do you have?
A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.
Q3: How are orders packed?
A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.
Q4: How long is the warranty of your products?
A4: We provide one year after-sale guarantee.
Q5: Can you produce the products labeled with the client's brand?
A5: OEM, ODM are supported.
Q6: What kind of payment terms do you accept?
A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
