Product Details:
|
| Product Name: | Brass Welding Hand Valve | Material: | Brass |
|---|---|---|---|
| Color: | Golden Yellow | Surface Treatment: | Sand Blasting Treatment |
| Size: | 1/4in 3/8in 1/2in 3/4IN | Customized Support:: | OEM, ODM |
| Warranty: | 1 Year | Loading Port: | Shanghai Or Ningbo |
| High Light: | Forged AC Spare Parts,Brass AC Spare Parts,R22 Refrigeration Hand Valve |
||

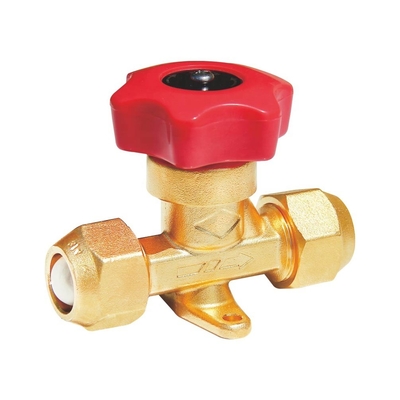

Flare Type of Forged Brass Welding Hand Valve For HVAC Spare Parts Suit for R22, R134A, R410A, R502, R407C
Product Introduction:
Hand valve is a kind of manual stop valve and applicable to one-way flow. It also can be used for the liquid of freezing, refrigeration and air
conditioning. it is also used in inhale heating pipes. It adopts the modified nylon king material in the valve core to achieve a good sealing, wear-
resisting and high temperature resistance.
Sand blasting process & No harm to hands
1.Adopt high quality copper material to forge forming, with good strength and hardness
2.Surface blasting process, make the appearance more exquisite and prevent any injury to your hand.
3.Ergonomic design with good apperance, each switch fits hand pattern well.
4.Short working trip, quick open and close, only need to turn one and a half round to open or close completely.
Product Features:
1.With nylon valve core, durable sealing surface, long service life.
2.With a stainless steel diaphragm which can avoid leaking during service life.
3.Just turn one and a half circle to make the valve full open or full closed. Simple operation,flexible start, no noise.
4. Applicable refrigerant medium:For R2,R134A.R410A.R502,R407C etc.◆Medium temperature:-25°~+100°◆Maximum working pressure:45MPa.
Product Specifications:
| Order No. | Model No. |
Specification |
Connection | Dimension(mm) |
PCS/CTN | ||||
| D | L | L1 | R | ||||||
| H33015 | SF-BL-02 |
1/4 | ODF | ø6.35 | 60 | 6 | 66 | 35 | 72 |
| H33016 | SF-BH-02 | SAE | 7/16-20UNF | 58 | 13 | 72 | |||
| H33017 | SF-BL-03 |
3/8 | ODF | ø9.52 | 52 | 5.5 | 72 | ||
| H33018 | SF-BH-03 | SAE | 5/8-18UNF | 60 | 13 | 72 | |||
| H33019 | SF-BL-04 |
1/2 | ODF | ø12.7 | 80 | 6 | 84 | 41.3 | 36 |
| H33020 | SF-BH-04 | SAE | 3/4-16UNF | 81 | 17 | 36 | |||
| H33021 | SF-BL-05 |
5/8 | ODF | ø15.88 | 82 | 7.5 | 36 | ||
| H33022 | SF-BH-05 | SAE | 7/8-14UNF | 84 | 17 | 36 | |||
| H33023 | SF-BL-06 |
3/4 | ODF | ø19.05 | 85 | 8.5 | 36 | ||
| H33024 | SF-BH-06 | SAE | 1-1/16-14UNF | 87 | 17.4 | 36 | |||
| H33025 | SF-BL-06A |
3/4 | ODF | ø19.05 | 90 | 8.5 | 110 | 50 | 24 |
| H33026 | SF-BH-06A | SAE | 1-1/16-14UNF | 105 | 24 | 24 | |||
| H33027 | SF-BH-07 |
7/8 | ODF | ø22.3 | 83 | 12.4 | 84 | 41.3 | 24 |
| H33028 | SF-BL-07 | SAE | 1-3/16-12UNF | 105 | 24 | 110 | 50 | 24 | |
Q1: Can you provide sample?
A1: Yes, we can send the sample for free but not pay the sample freight.
Q2: What kind of Certificate do you have?
A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.
Q3: How are orders packed?
A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.
Q4: How long is the warranty of your products?
A4: We provide one year after-sale guarantee.
Q5: Can you produce the products labeled with the client's brand?
A5: OEM, ODM are supported.
Q6: What kind of payment terms do you accept?
A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
