Product Details:
|
| Product Name: | 13pcs Tubing Tool Kit | Type: | Flaring And Swaging Tool |
|---|---|---|---|
| Material: | Steel | Applicable Pipe: | Copper Pipe |
| Color: | As Picture | For Inch: | As Form |
| Application: | Refrigeration Assembly Tools | Customized Support: | OEM, ODM |
| High Light: | Multifunctional Flaring Tool Kit,Air Conditioning Flaring Tool Kit,Steel refrigeration flaring tool |
||
Hand Tools Type Flaring Tool Kit set CT-813 multifunctional refrigeration flaring tool f or air conditioning

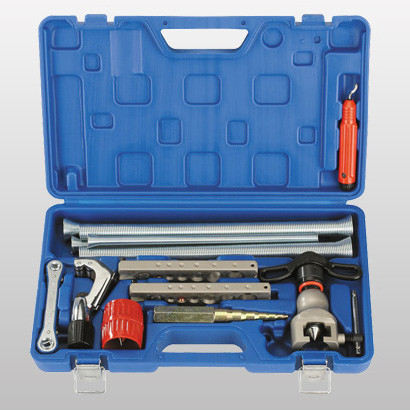

Tool kit including
WK-R806AM Flares:1/4″,5/16″,3/8″,1/2",5/8",3/4″&6mm,8mm,10mm,12mm,16mm,19mmO.D.Tubing
CT-274 Tube Cutter 1/8″to 1-1/8″(4 to 28mm)
CT-209 Reamer 1/4″to 1-5/8″(3 to 41mm)
CT-122 Ratcher Wrench(3/8″,5/16″,1/4″and3/16″sq.reversible ratchets)
CT-207 Handy deburrer,Blade can be swivelled.
CT-96 Swaging Punch For:1/4″,5/16″,3/8″,1/2″,5/8″&3/4″O.D.Tubing
CT-102-L For Inch:5/16″,3/8″,1/2″,5/8″&3/4″size O.D.Tubing
| Model Number | CT-813 |
| Type | Assembly Tools |
| Product name | 13pcs tubing tool kit |
| Application | Refrigeration |
| CT-274 | 1/8~1-1/8 |
| CT-209 | 1/4~1-5/8 |
| CT-122 | 3/8~3/16 |
| CT-96 | 1/4~3/4 |
| CT-102-L | 5/16 ~3/4 |
| Weight | 25.2KG |
| Size | 44*39.5*28.5cm |
Features
1.Easy operation, save time and energy.
2. The special cone eccentric revolution will be allows the internal opening gradually and form 45~ accurate and regular flare
without, preventing tube slippage downward. Therefore, the flare face will be smooth, uniform without scratching.
3. Eccentric cone will be rebound by itself after the work is finished,make the idle top head in revolution again for 1-2 rounds and have the flare face in friction to make it prettier.
4. For Inch: 1/4'' 3/4''O.D. Tubing For metric:6,8,10,12,16,19mm O.D. Tubing
How to used
1. Set up the tube with it's point head to just out the bar for 0-1mm.
2. Be sure to keep the point head of flaring cone at a
center place. The flaring cone wll be in eccentric revolution which allows the tube to open gradually, therfore, the bend face
will be uniform.
