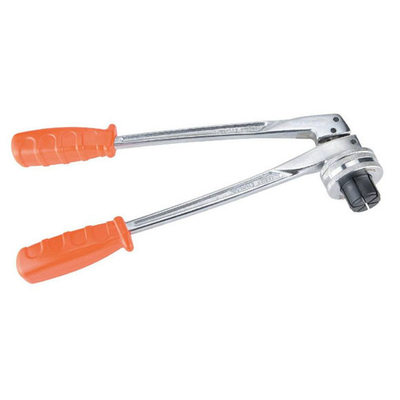

Product Details:
|
| Product Name: | Lever Tube Expanding Tool Kit | Type: | Flaring And Swaging Tool |
|---|---|---|---|
| Material: | Alloy Steel | Applicable Pipe: | Copper Pipe |
| Color: | Silver | For Inch: | 3/8",1/2",5/8",3/4",7/8",1",1-1/8",1-1/4",1-3/8",1-1/2",1-5/8" |
| For Metric: | 10,12,16,19,22,25,28mm，32，35，38，42mm | Customized Support: | OEM, ODM |
| High Light: | Eccentric Refrigeration Hand Tools,Cone Refrigeration Hand Tools,Lever Tube Expanding tool Kit |
||
SIX EASY STEPS
1.Deburr inside of tube.
2.To create perfectly expanded tubing for soldering or brazing you must use soft copper or fully anneal end of
tube to be expanded.
3.Pull expander handle up to 90-degree position.Maintain this position as you screw the appropriate size head
over the center-punch and tighten.
4.Insert the end of the tube over the expander head completely.
5.Pull the lever completely down.
6.Return the lever to the 90-degree position.Remove expanded tube.
| Item No. | Description | ||
| CT-100AL | Normal | CT-100A+CT-650+CT-207 | For inch:3/8",1/2",5/8",3/4",7/8",1",1-1/8",1-1/4",1-3/8",1-1/2",1-5/8" O.D.Tubing. |
| CT-100ML | Normal | CT-100M+CT-650+CT-207 | For Metric:10,12,16,19,22,25,28mm,32,35,38,42mm O.D.Tubing. |
| CT-100A | Normal | CT-100A+WK-532+CT-207 | For inch:3/8",1/2",5/8",3/4",7/8",1",1-1/8" O.D.Tubing. |
| CT-100M | Normal | CT-100M+WK-532+CT-207 | For Metric:10, 12,16,19,22,25,28mm O.D.Tubing. |
Feature
*Hand-operated,single-stage expanderis designed to expand tubing for fast,accurate joints in soft copper,aluminium,
and soft steel tube without using fittings.
*Free-floating and self-centering expandsr mechanism.
*Expander segments are made of high-quality hardened steel.
