Product Details:
|
| Product Name: | Hydraulic Copper Tube Expander Tool Kit | Type: | Flaring And Swaging Tool |
|---|---|---|---|
| Material: | Iron | Applicable Pipe: | Copper Pipe |
| Color: | Silver | For Inch: | 3/8",1/2",5/8",3/4",7/8",1",1-1/8" |
| For Metric: | 10,12,16,19,22,25,28mm | Customized Support: | OEM, ODM |
| High Light: | Manual Hydraulic Copper Tube Expander,Cordless Hydraulic Copper Tube Expander,Iron Tube Expander Tool Kit |
||

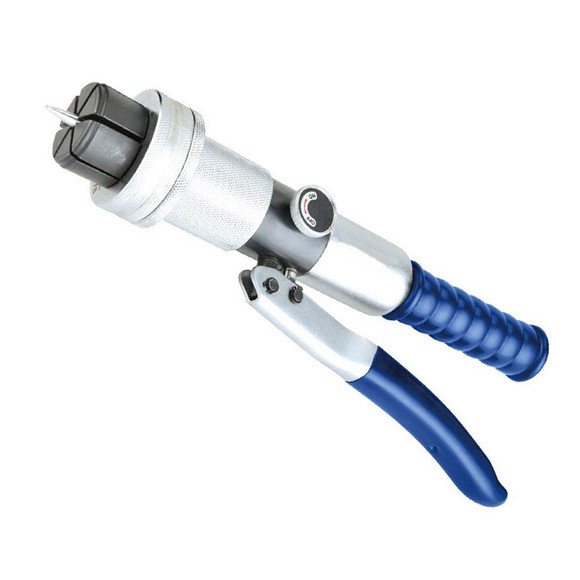

Cordless Flaring Tool Hydraulic Copper Tube Expander Tool Kit CT 300 Refrigeration Hand Tools
Features
*Save cost of material---no copper coupling needed any more.
*Save cost and reduce the possiblity of leak---only one side need to be welded.
*Can expand tubings from 3/8" to 1-1/8" diamter easily with manual hydraulic mechanism design.
*Widesly used for soft copper tube,alumnium tube,titanium tube,soft steel and other soft tube.
Advantage
No copper coupling needed any more,Save cost of material.
Only one side need to be welded.Save cost and reduce possibility of leak.
Manual hydraulic mechanism design can expand tubings from 10mm to 42mm diameter.
Used for soft copper tube,Alumimum tube,Titanium tube,soft steel and other soft tube.
Operation Guide
SIX EASY STEPS:
1. Deburr inside of tube.
2. Anneal the tube if necessary(for hard or thickwall tube).
3. Screw the expander head on expander.
4. Put the end of tube on expander head.
5. Tighten the relief valve knob to‘On’position then pump handle until tube is expanded to the end.
6. Turn the relief valve knob to‘OFF’possition to loosen expander head.Remove expanded tube.
| Item No. | Description | ||
| CT-300A | Normal | CT-300A+CT-107+CT-209 | For inch:3/8",1/2",5/8",3/4",7/8",1",1-1/8" O.D.Tubing. |
| CT-300M | Normal | CT-300M+CT-107+CT-209 | For metric:10,12,16,19,22,25,28mm O.D.Tubing. |
| CT-300AL | Normal | CT-300A+WK-650+CT-209+CT-207+CT-300PL | For inch:3/8",1/2",5/8",3/4",7/8",1",1-1/8",1-1/4",1-3/8",1-1/2",1-5/8" O.D.Tubing. |
| CT-300ML | Normal | CT-300M+WK-650+CT-209+ CT-207+CT-300PL | For metric:10,12,16,19,22,25,28mm,32,35,38,42 mm O.D.Tubing. |
CT-300ASwaging / Expanding Kit (CT-300A+CT-107+CT-209)
1. manual hydraulic mechanism designed can expand from 10mm to 42mm O.D. tubing easily with less effort.
2. used for soft copper tube,Alumimum tube,Titanium tube,soft steel and other soft tube.
3. expander segments are made of high-quality hardened steel.
4. For inch:3/8",1/2",5/8",3/4",7/8",1",1-1/8" & metric:10,12,16,19,22,25,28mm O.D. Tubing.
5. CT-300M / Expanding Kit (CT-300M+CT-107+CT-209)
