Product Details:
|
| Name: | Digital Manifold Gauge Meter | Color: | Green |
|---|---|---|---|
| Type: | Manifold Pressure Testing | Application Refrigerants: | R12;R22;R410A;R502;R134A Etc. |
| Delivery Support: | By Sea Or By Air | Loading Port: | Ningbo Or Shanghai |
| High Light: | Ac Gas Pressure Gauge R502,Ac Gas Pressure Gauge R134A,R134A Digital Manifold Gauge Meter |
||

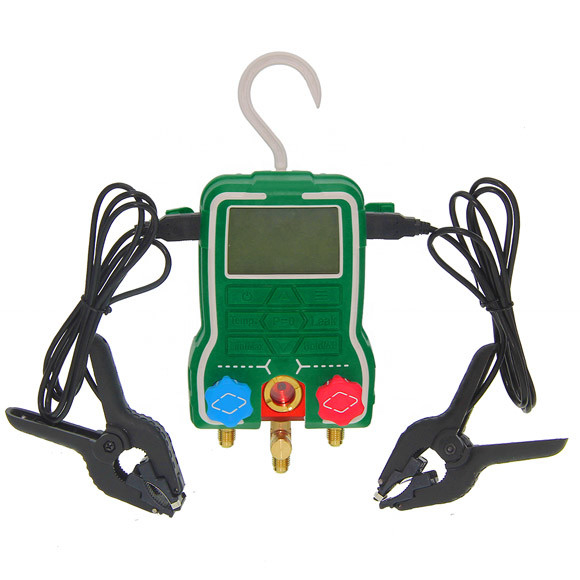

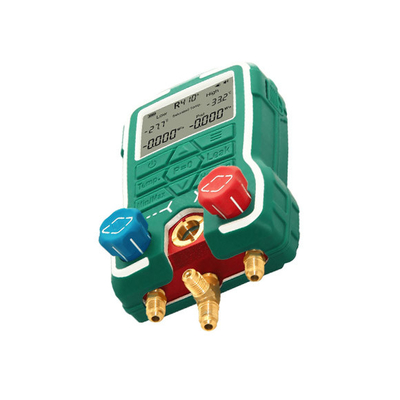

Brass Ac Gas Pressure Gauge R502 R134A Digital Manifold Gauge Meter
Product Functions
1. Ac Gas Pressure Gauge features a big artistic screen and batteries with 1 year service life. The gauge has backlight, auto off, low battery indication, overpressure alarm and other functions. It is designed for use in piping system, refrigerated system and other applications.
2.This gauge has no moving parts, has long service life, high precision, good long-term stability.
3.It has pressure and temperature parameters for commonly used refrigerant inside,the measured pressure, condensation temperature and evaporation temperature are very clear to see.
Application Range
The SBF-L-07 digital display double table valve is used for the assembly and maintenance of vacuum refrigeration system. The operator must possess the qualification of the industry and have certain operational experience.
◆ The SBF-L-07 digital display double table valve sets together with the traditional composite table, the temperature measuring instrument and the refrigerant characteristic diagram, and it's available to measure both pressure and temperature.
◆ The SBF-L-07 digital display double table valves are suitable for most non-corrosive refrigerant, water, alcohols. But it is not suitable for the refrigerant containing ammonia.
◆ This product is not suitable for the areas with explosion - proof requirements.
Highlight: Strong, shockproof &corrosion-resistant,Clear and direct reading
| Features and parameters |
Value |
| Measure parameters |
Pressure: MPa,kPa,bar,psi,kgf/cm ,inHg |
| Temperature: F ,ºC,K | |
| Sensor | Pressure: internal pressure sensor×2 |
| Temperature: external temperature sensor×2 | |
| Port | Pressure: 1/4" SAE x 3 |
| Temperature: USBx2 | |
| Measure range | Pressure: -0.1~5.0Mpa |
| Temperature: -55~125ºC | |
| Resolution | Pressure: 0.001MPa |
| Temperature: 0.1ºC | |
| Measure accuracy |
Pressure: ±0.4% (below 20±5ºC) |
| Temperature: ±0.5ºC | |
| Measure frequency | 1s |
| Features and parameters | Value |
| Applicable refrigerant type | 82 kinds |
| Optional refrigerant |
R11,R113,R114,R115,R116,R12,R123,R124,R1234yf,R1234ze,R125,R1270,R13,R134A,R14,R141B,R142B, R143A,R152A,R161,R22,R227,R23,R290,R32,R401A,R401B,R401C,R402A,R402B,R404A,R406A,R407A,R407B, R407C,R407D,R408A,R409A,R409B,R410A,R410B,R411A,R411B,R412A,R413A,R414A,R414B,R415A,R415B, R416A,R417A,R418A,R419A,R420A,R421A,R421B,R422A,R422B,R422C,R422D,R423A,R424A,R425A,R426A, R427A,R428A,R434A,R437A,R438A,R50,R500,R501,R502,R503,R504,R507A,R508A,R508B,R509A,R600,R600A, R744 Note: The mersure of R32,R744 cannot beyond the specified mersuring range |
| Unapplicable refrigerant | Ammonia (R717)and ammonia - containing refrigerant. |
| Ambient humidity | 10%~90% RH |
| Allowable overload pressure | 110% measuring range |
| Operating temperature | -10~50ºC |
| Material | Double color engineering plastics. |
| Dimension | 185x110x55mm |
| Weight | About 0.5Kg |
| Power supply | AA Alkaline?batteries, 1.5Vx4 (Battery life: >2000 hours, backlight extinction). |
| Display | LCD screen with backlight. |
| Protection degree | IP42 |
| Adopted standard | JB/T 7392-2006 |
