Product Details:
|
| Material: | Aluminum Alloy, S/S, Ferreous, Brass, Rubber And Plastic | Type: | Pressure Gauge |
|---|---|---|---|
| Color: | Blue, Red | Product Name:: | Manifold Gauge Set |
| Working Pressure: | 0-5000 Psi | Connection Thread: | 1/4 SAE, 5/16 SAE |
| Loading Port: | Ningbo Or Shanghai | Support: | OEM, ODM |
| Warranty: | 1 Year | Vacuum Measuring: | 0~76cmHg |
| High Light: | R410A Commercial Refrigeration Repair Parts,R134A Commercial Refrigeration Repair Parts,R22 Manifold Gauge Set |
||

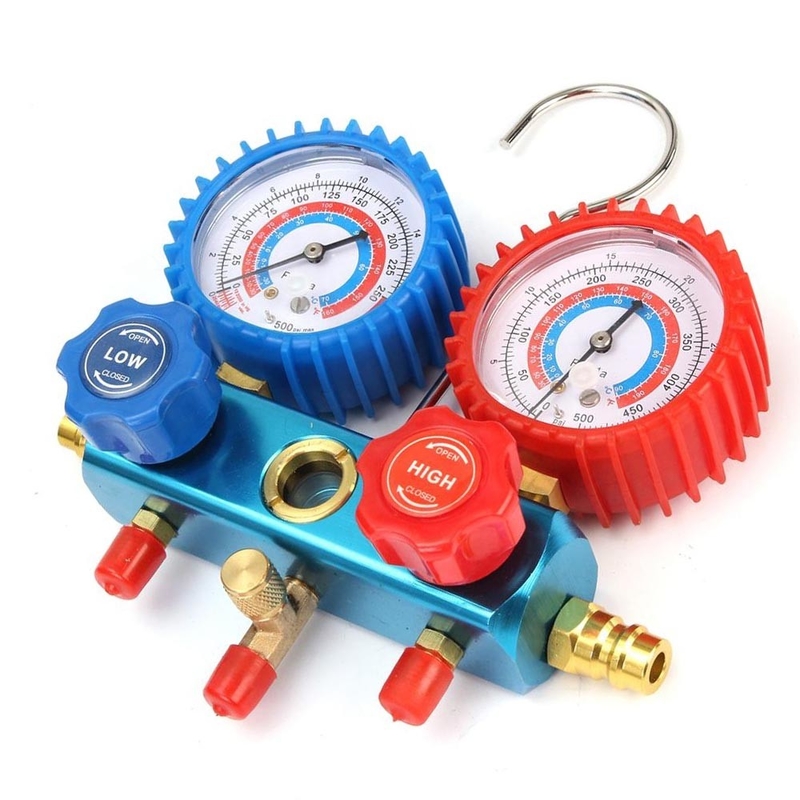

Production Introduction
The pressure flow and the controls of the cold media group for the injection of refrigerant, It is widely used in the area of hydraulic and atmospheric pressure as refrigerant equipment, Air Conditioner and refrigerant tools, pressure tools, vacuum equipment, pneumatic equipment, etc. This gauge has no moving parts, has long service life, high precision, good long-time stability.
Packaging Details:
1 set per suitcase, 5 sets per shipping carton.
Ctn Size: 48 (L) x 34 (W) x 33.5 (H) cm
N.W.: 13.8kg/ctn
G.W.: 15.8kg/ctn
| Applications | For air conditioner refrigerant R134a pressure test, charging and evaluating |

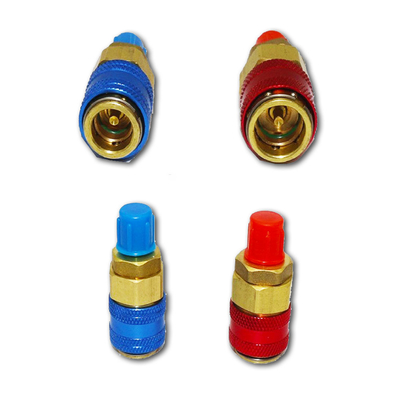

| Materials | Iron gauge boxes and hooks; Aluminum alloy double valve body; Brass high, low, vacuum connections and couplers; Rubber protective layer |
| High Pressure Test Range | 0~500psi |
| Low Pressure Test Range | 0~350psi |
| Vacuum Test Range | 0~76cmHg |
| Accuracy | ±1.6% |
| Charging Hose Length | 1.5m |
| Connection Size | 1/4 SAE, 5/16 SAE |
| Case Size | 31 (L)*30.5 (W)*9 (H) cm |
| Weight | 2.76 kg/set |

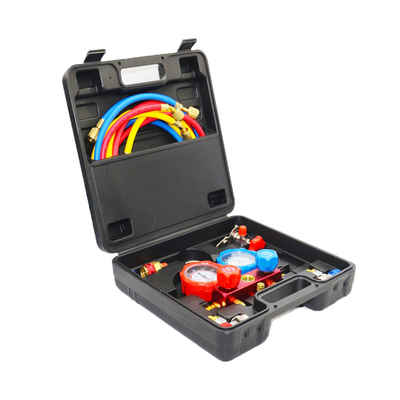

| 1 Packing | 1 set of refrigerant manifold pressure gauge per plastic suitcase, 5 sets per shipping carton |
