Product Details:
|
| Material: | Brass | Color: | Red, Blue |
|---|---|---|---|
| Type: | Pressure Gauge | Application Refrigerants: | R134A R22 R12 R502 R410A R404 R1234YF |
| Customized Support: | OEM, ODM | Warranty: | 1 Year |
| Delivery Support: | By Sea Or By Air | Loading Port: | Ningbo Or Shanghai |
| High Light: | AC Commercial Refrigeration Repair Parts,ISO Commercial Refrigeration Repair Parts,AC brass manifold gauge |
||

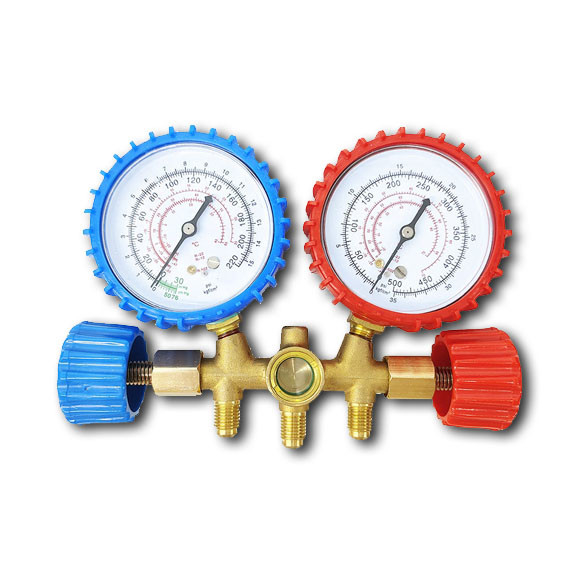

Product Introduction:
The pressure flow and the controls of the cold media group for the injection of refrigerant, It is widely used in the area of hydraulic and atmospheric pressure as refrigerant equipments, Air Conditioner and refrigerant tools, pressure tools, vacuum equipments, pneumatic equipments, etc. This gauge has no moving parts, has long service life, high precision, good long-time stability.
Features:
1. Brass block body.
2. Unique streamline anti-collision design
3. Extra large knobs for easy grip
4. Excellent vacuum characteristics
5. One full turn open/close valve
6. The large scale mark and high contrast color design makes the way of reading data easier.
7. Compatible with : R134A R22 R12 R502 R410A R404 R1234YF.
8. Every manifold is individually tested for reliability before packing
9. Pure copper core as per the International Standard 1.6 precision.
Product Data:
| Product Name | Manifold Gauge Set HVAC refrigeration system Charging |
| Body Material | Brass & Auminum |
| Handle Material | The Plastic & Aluminum |
| Refrigerant | R134A R22 R12 R502 R410A R404 R1234YF charging hole 2500PSI 3000PSI 4000PSI 36” 48” 60” 72” 96” |
| Maximum Overload Pressure | 75bar, 1087psi, 7.5 MPa, 76.5kgf/cm², 7500KPa |
| Pressure Range | 0~50bar, 0~720psi, 0~5MPa, 0~51kgf/cm², 0~5000KPa(Relative pressure) |
| Vacuum Range | -29.9~0inHg |
| Resolution | 0.1bar, 0.1psi, 0.001MPa, 0.1kgf/cm², 1Kpa, 0.1inHg |
| Connection | 1/4SAE |
| Operating Temperature | -10~50℃, 14~122°F |
| Storage Temperature | -20~60℃, -4~140°F |
FAQ
Q1: Can you provide sample?
A1: Yes, we can send the sample for free but not pay the sample freight.
Q2: What kind of Certificate do you have?
A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.
Q3: How are orders packed?
A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.
Q4: How long is the warranty of your products?
A4: We provide one year after-sale guarantee.
Q5: Can you produce the products labeled with the client's brand?
A5: OEM, ODM are supported.
Q6: What kind of payment terms do you accept?
A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
