Product Details:
|
| Material: | Copper | Color: | Red |
|---|---|---|---|
| Model No.: | 180 Degree | Size: | 140MM |
| Shape: | Elbow Joint | Application: | Connecting Copper Pipe |
| Standard: | ASME B16.22 EN1254-1:1998 | Surface Treatment: | Polish |
| Technics: | Forged | Customized Support: | OEM, ODM |
| Warranty: | 3 Years | Loading Port: | Shanghai Or Ningbo |
| High Light: | U Shape Refrigeration Pipe Fittings,Refrigeration Pipe Fittings CE,Plumbing 180 Degree Elbow |
||

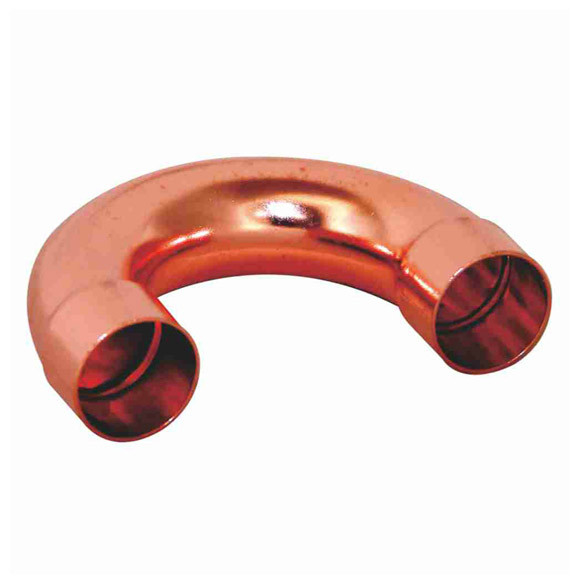

180 Degree U Shape Elbow of Red Copper Pipe Fittings for Cooling & Plumbing
Product Description
Red Copper pipes are strong and corrosion-resistant, and have become the first choice for modern contractors to install water pipes, heating and cooling pipes in all residential commercial buildings. Red coppers are used as charging and service tools. They are mainly applied to refrigeration and Air Conditioner equipment. The material is made of premium red copper with a longer service life, stronger and more durable than iron. Copper Pipe fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of red copper that resist corrosion and wear.
The coppers could combine the different ways of reversing valve, check valve, thermostat expand valve drier-filter, distributor together with pipes in special shape by welding process to make the equipment assembling process be convenient.
Product Diamensions
|
Order No. |
Model No. |
Dimension(mm) |
|||||
|
A |
D |
L |
L1 |
R |
T |
||
|
H43739 |
U-6 |
18 |
6.05 |
16 |
6 |
9 |
0.7 |
|
H43740 |
U-8 |
24 |
8.05 |
20 |
7 |
12 |
0.8 |
|
H43741 |
U-10 |
30 |
10.05 |
24 |
8 |
15 |
0.8 |
|
H43742 |
U-12.7 |
36 |
12.75 |
30 |
10 |
19 |
0.8 |
|
H43743 |
U-15.88 |
48 |
15.95 |
37 |
12 |
24 |
1 |
|
H43744 |
U-16 |
48 |
16.07 |
37 |
12 |
24 |
1 |
|
H43745 |
U-19 |
60 |
19.07 |
45 |
13 |
30 |
1 |
|
H43746 |
U-22 |
68 |
22.10 |
51 |
15 |
34 |
1 |
|
H43747 |
U-25 |
75 |
25.10 |
56 |
17 |
38 |
1.1 |
|
H43748 |
U-28 |
88 |
28.10 |
64 |
19 |
44 |
1.1 |
|
H43749 |
U-32 |
108 |
32.10 |
77 |
21
|
54
|
1.3
|
|
H43750 |
U-35 |
108 |
35.10 |
78 |
22 |
54 |
1.3 |
|
H43751 |
U-38 |
111 |
38.10 |
81 |
23 |
55.55 |
1.4 |
|
H43752 |
U-42 |
114 |
42.10 |
84 |
25 |
57.15 |
1.5 |
|
H43753 |
U-45 |
114 |
45.10 |
88 |
26 |
57.15 |
1.5 |
|
H43754 |
U-54 |
140 |
54.15 |
102 |
30 |
69.85 |
1.7 |
|
H43755 |
U-67 |
180 |
67.15 |
128 |
35 |
90 |
1.8 |
|
H43756 |
U-ø9.52x25.4 |
|
9.52 |
24 |
10.00 |
12.70 |
0.50 |
|
H43757 |
U-ø12.7x31.8 |
|
12.7 |
31 |
12.00 |
15.88 |
0.70 |
|
H43758 |
U-ø15.88x38.1 |
|
15.88 |
35 |
14.00 |
19.05 |
0.8 |
Features
1. Copper is economical. The easy processing and connection can save material and total cost during installation, and it can be stable and reliable, and can save maintenance.
2. Copper is light. For twisted threaded pipes of the same inner diameter, the copper pipe does not require the thickness of the ferrous metal. When installed, copper pipes are less expensive to transport, easier to maintain and take up less space.
3. Copper can change shape. Because copper pipe can be bent and deformed, it can often be made into elbows and joints, and the smooth bend allows the copper pipe to be bent at any angle.
4. Copper is easy to connect.
5. Copper is safe. No leakage, no combustion, no toxic gas, corrosion resistance.
FAQ
Q1: Can you provide sample?
A1: Yes, we can send the sample for free but not pay the sample freight.
Q2: What kind of Certificate do you have?
A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.
Q3: How are orders packed?
A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.
Q4: How long is the warranty of your products? ?
A4: We provide one year after-sale guarantee.
Q5: Can you produce the products labeled with the client's brand?
A5: OEM, ODM are supported.
Q6: What kind of payment terms do you accept?
A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
