Product Details:
|
| Material: | Copper | Application: | Refrigeration Fittings |
|---|---|---|---|
| Keyword: | Tripod | Technics: | Casting |
| Shape: | Reducing | Connection: | Welding |
| High Light: | VRV Copper Branch Pipe,AC Copper Branch Pipe,Tripod Copper Pipe Connection |
||
DAIKIN VRV TYPE A/C SYSTEM Disperse Pipes FQG/DJ,Fitting Pipe,Copper fitting
Product Description:

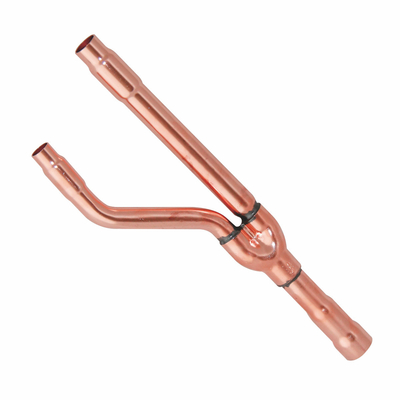

The branch pipe is made of high quality copper pipe. Our ordinary refrigerator and all kinds of refrigeration equipment need copper pipe connection to achieve refrigeration effect. Therefore, the installation of fluorine machine in the central air conditioner is also used to realize cooling effect through the connection of copper pipe. The branch pipe connects the copper pipe and each indoor unit. It can be seen that branch pipe is very important for the installation and operation of central air-conditioning. Its function is to connect the indoor machine with the copper pipe, so that the refrigerant circulates in the copper pipe to achieve the effect of refrigeration and heat transfer.
Selection description:
A series:
This series of products are produced according to the factory standard design.
B/C series:
Referring to the technical data of factory standard design, these products remove the excessive
parts of the original design,the aim of material saving and high cost performance is achieved.
A series:
| Order No. | Model No. | Total Length | I.D. of A side | I.D. of B side | I.D. of C side | PCS/CTN | |
| H40000 | FQG/DJ-22T-A-P | Gas pipe | 365 | 12.7/15.9/19.1 | 15.9/12.7 | 15.9/12.7 | 40 |
| Liquid pipe | 270 | 9.6 | 9.6/6.4 | 9.6/6.4 | |||
| Accessory | 1 Accessory is optional | ||||||
| H40001 | FQG/DJ-33T-A-P | Gas pipe | 345 | 22.2/19.1 | 19.1/15.9 | 15.9/12.7 | 40 |
| Liquid pipe | 275 | 12.7/9.6 | 9.6/6.4 | 9.6/6.4 | |||
| Accessory | 2 Accessory is optional | ||||||
| H40002 | FQG/DJ-72T-A-P | Gas pipe | 492 | 31.8/28.6/25.4 | 25.4/19.1/15.9 | 19.1/15.9/12.7 | 18 |
| Liquid pipe | 329 | 15.9/12.7 | 12.7/9.6 | 12.7/9.6/6.4 | |||
| Accessory | 3 Accessory is optional | ||||||
| H40003 | FQG/DJ-73T-A-P | Gas pipe | 630 | 38.1/31.8 | 31.8/28.6/25.4 | 25.4/19.1/15.9 | 12 |
| Liquid pipe | 426 | 15.9/19.1 | 19.1/15.9/12.7 | 15.9/12.7/9.6 | |||
| Accessory | 5 Accessory is optional | ||||||
| H40007 | FQG/DJ-22MC90-A | Gas pipe | 505 | 31.8/28.6 | 28.6/25.4/22.3/19.1 | 25.4 | 18 |
| Liquid pipe | 385 | 22.3/19.1/15.9 | 12.7/9.5 | 15.9 | |||
| H40008 | FQG/DJ-22MC135-A | Gas pipe 1 | 505 | 38.1/31.8 | 28.6/31.8 | 25.4 | 9 |
| Liquid pipe 1 | 373 | 22.3/19.1 | 15.9/19.1 | 15.9 | |||
| Gas pipe 2 | 473 | 31.8/28.6 | 28.6/25.4/22.3/19.1 | 25.4 | |||
| Liquid pipe 2 | 373 | 19.1/15.9 | 12.7/9.6 | 15.9 | |||
| Accessory | 14 Accessory is optional | ||||||
B series:
| Order No. | Model No. | Total Length | I.D. of A side | I.D. of B side | I.D. of C side | PCS/CTN | |
| H40009 | FQG/DJ-22T-B-P | Liquid pipe | 318 | 12.7/15.9/19.1 | 15.9/12.7 | 15.9/12.7 | 40 |
| Gas pipe | 246 | 9.6 | 9.6/6.4 | 9.6/6.4 | |||
| Accessory | 1 Accessory is optional | ||||||
| H40010 | FQG/DJ-33T-B-P | Gas pipe | 296 | 22.2/19.1 | 19.1/15.9 | 15.9/12.7 | 40 |
| Liquid pipe | 255 | 12.7/9.6 | 9.6/6.4 | 9.6/6.4 | |||
| Accessory | 2 Accessory is optional | ||||||
| H40011 | FQG/DJ-72T-B-P | Gas pipe | 415 | 31.8/28.6/25.4 | 25.4/19.1/15.9 | 19.1/15.9/12.7 | 18 |
| Liquid pipe | 262 | 15.9/12.7 | 12.7/9.6 | 12.7/9.6/6.4 | |||
| Accessory | 3 Accessory is optional | ||||||
| H40012 | FQG/DJ-73T-B-P | Gas pipe | 520 | 38.1/31.8 | 31.8/28.6/25.4 | 25.4/19.1/15.9 | 18 |
| Liquid pipe | 360 | 15.9/19.1 | 19.1/15.9/12.7 | 15.9/12.7/9.6 | |||
| Accessory | 5 Accessory is optional | ||||||
| H40015 | FQG/DJ-75T-B-P | Gas pipe | 630 | 44.5/38.1 | 38.1/31.8/25.4 | 31.8 | 12 |
| Liquid pipe | 326 | 22.2/19.1 | 19.1/15.9/12.7 | 19.1 | |||
| Accessory | 3 Accessory is optional | ||||||
| H40016 | FQG/DJ-22MC90-B | Gas pipe | 436 | 31.8/28.6 | 28.6/25.4/22.3/19.1 | 25.4 | 18 |
| Liquid pipe | 292 | 22.3/19.1/15.9 | 12.7/9.5 | 15.9 | |||
| H40017 | FQG/DJ-22MC135-B | Gas pipe1 | 436 | 38.1/31.8 | 28.6/31.8 | 25.4 | 9 |
| Liquid pipe1 | 278 | 22.3/19.1 | 15.9/19.1 | 15.9 | |||
| Gas pipe2 | 379 | 31.8/28.6 | 28.6/25.4/22.3/19.1 | 25.4 | |||
| Liquid pipe2 | 279 | 19.1/15.9 | 12.7/9.6 | 15.9 | |||
| Accessory | 14 Accessory is optional | ||||||
C series:
|
Order No. |
Model No. | Total Length | I.D. of A side | I.D. of B side | I.D. of C side | PCS/CTN | |
| H40018 | FQG/DJ-22T-C-P | Liquid pipe | 234 | 12.7/15.9/19.1 | 15.9/12.7 | 15.9/12.7 | 80 |
| Gas pipe | 163 | 9.6 | 9.6/6.4 | 9.6/6.4 | |||
| Accessory | 1 Accessory is optional | ||||||
| H40019 | FQG/DJ-33T-C-P | Gas pipe | 231 | 22.2/19.1 | 19.1/15.9 | 15.9/12.7 | 80 |
| Liquid pipe | 178 | 12.7/9.6 | 9.6/6.4 | 9.6/6.4 | |||
| Accessory | 2 Accessory is optional | ||||||
| H40020 | FQG/DJ-72T-C-P | Gas pipe | 287 | 31.8/28.6/25.4 | 25.4/19.1/15.9 | 19.1/15.9/12.7 | 40 |
| Liquid pipe | 222 | 15.9/12.7 | 12.7/9.6 | 12.7/9.6/6.4 | |||
| Accessory | 3 Accessory is optional | ||||||
| H40021 | FQG/DJ-73T-C-P | Gas pipe | 347 | 38.1/31.8 | 31.8/28.6/25.4 | 25.4/19.1/15.9 | 18 |
| Liquid pipe | 246 | 15.9/19.1 | 19.1/15.9/12.7 | 15.9/12.7/9.6 | |||
| Accessory | 5 Accessory is optional | ||||||
