Product Details:
|
| Material: | Brass | Color: | Red, Blue |
|---|---|---|---|
| Type: | Floating Ball Valve | Working Humidity: | 10~900%RH |
| Working Temperature: | -10~50℃ | Application Refrigerants: | R12, R22, R32, R123, R134A, R290, R404A, R407C, R410A, R502, R507, R600A . |
| Customized Support: | OEM, ODM | Protection Grade: | IP66 |
| Warranty: | 1 Year | Delivery Support: | By Land, By Sea Or By Air |
| Loading Port: | Ningbo Or Shanghai | ||
| High Light: | Aluminum Digital Manifold Gauge,Air Conditioning Digital Manifold Gauge,IP66 Air Conditioning Tools |
||

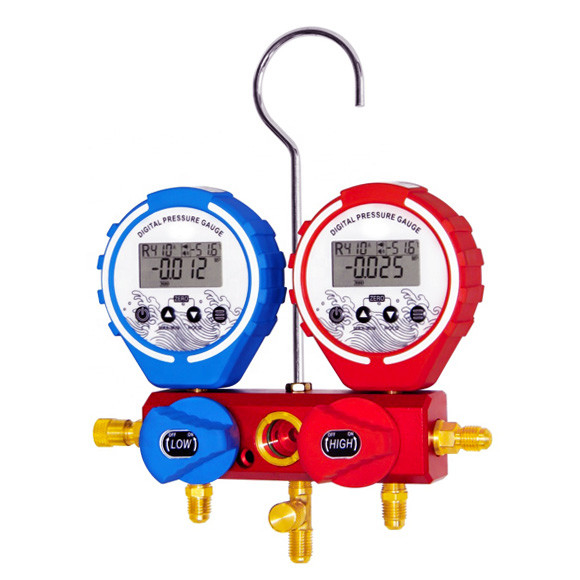

Digital Aluminum Manifold Gauge Set With Recycling Aluminum Valve, Refrigerant Manifold Gauge Set Air Conditioning Tools
Digital Manifold Gauge
|
Order No. |
Model No. |
PCS/CTN |
|
H20023 |
SBF-L-05 |
5 Pcs/ Ctn |
Product Introduction
Digital Refrigeration Pressure Gauge adopts the latest Microprocessor Controller, 24-Bit Analog-to-Digital Converter and high precision pressure sensor. It can both accurately measure the pressure of the gas & liquid, and also the vacuum pressure.
It has long life, high stability and precision measurement, because of having no moving parts. It contains the common parameter of the pressure& temperature. The pressure, condensing temperature and evaporation temperature is easy to read by the large screen. It is widely used in the hydraulic and barometric measurement, like refrigeration equipment, air-conditioner refrigerant tools, refrigerant pressure measurement, vacuum equipment, pneumatic equipment, etc.
Product Info
| Item | Digital Aluminum Manifold Gauge |
| Model | SBF-L-05*GS |
| Order No. | 20023 |
| Packing | 1 set/box, 5 boxes/carton |
| Measuring Speed | 1 times/ second |
| Allowed overload pressure | 100% range |
| Sensor failure pressures | 300% range |
| Pressure connection | NPT1/8 |
| Working humidity | 10~90%RH |
| Working temperature | -10~50ºC |
| Temperature of ensuring the accuracy | 20±5ºC |
| Battery | 6F22 or 6LR61 laminated 9V battery |
| Protection level | IP66 |
| Productive standard | JB/T 7392-2006 |
Features
1, Gas and liquid can be measured.
2, Vacuum degree can be measured.
3, Common parameter of the refrigerant pressure& temperature is contained.
4, LCD display with back light.
5, Long battery life; No electricity after power off.
6, More durable because of the rubber protective covering.
Processing Steps
