Product Details:
|
| Product Name: | Digital Manifold Gauge | Material: | Aluminum Alloy |
|---|---|---|---|
| Type: | Precision Pressure Gauge | Connector: | 1/4 SAE |
| Pressure Accuracy: | 1% | Voltage: | 220v-50hz |
| Temperature Range: | -55~125℃ | Temperature Accuracy: | ±0.5℃(-10 85℃) |
| Pressure Range: | -0.1~4.2MPa(Gauge Pressure) | ||
| High Light: | Automobile Commercial Refrigeration Repair Parts,220v Commercial Refrigeration Repair Parts,220v digital gauge set |
||

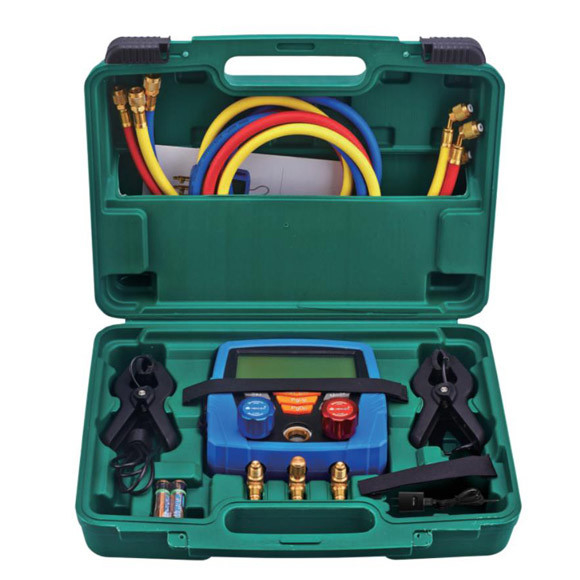

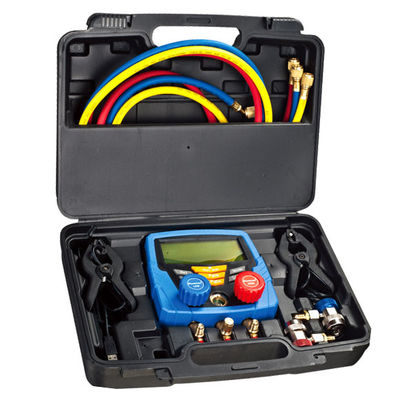

Accessaries:
1 set of 60"800~4000psi charging hose(red,yellow,blue)
2 sets of temperatures
·1 pcs of Charger (Alguns modelos disponíveis )

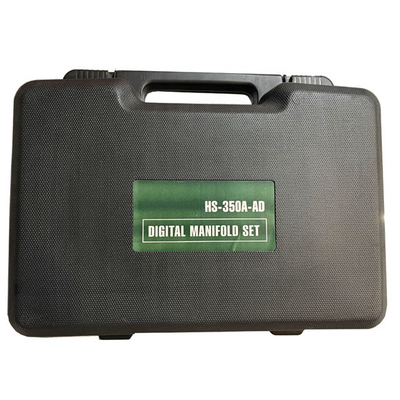

·Plastic packing case
Features
· The shell adopts soft and comfortable design,which makes it give comfortable handle and high shock resistance

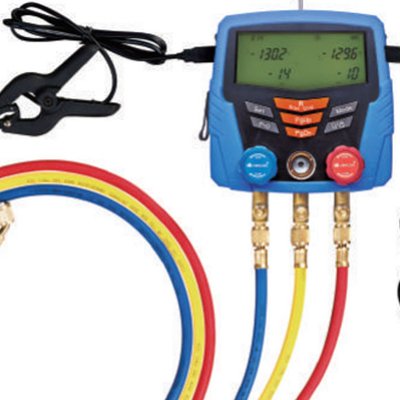

· Large screen,multi-angle,big-font LCD and backlight design
· High precision pressure senor and Digital temperature sensor greatly improve the accuracy and precision
· Micro power electronic component design greatly enhance the life of battery
· Contain 61 kinds of refrigerant parameter
· Dual channel RT measurement can work out the superheat and supercooling
· Multi-mode option can be used in vacuum measurement,pipe leak detection and routing maintance
· Different pressure unit(MPa,kPa,bar,psi),temperature unit(℃,℉)can be switched freely to meet the usage
· It switches off automatically when the pressure is overloaded
· The valve body is made of high qualit aluminum alloy
Technical Parameters:
| Model | HS-350A-AD |
| Connector | 1/4SAE |
| Refrigerant | R11, R12,R13, R14, R21, R22, R23, R41, R114, R115, R123, R124, R134a, R176, R218, R245CA, R290, R410A, R410B, R410C, R402A, R402B, R403A, R403B, R404A, R406A, R407A, R407B, R407C, R408A, R409A, R410B, R411B, R412B, R411B, R412A, R413A, R414A, R416A, R417A, R420A, R421A, R422A, R422B, R422D, R423A, R424A, R427A, R434A, R437A, R438A, R501, R502, R503, R504, R507, R600A, R601, R601A, R718,R1234yf |
| Temperature Range | -55℃-125℃ |
| Temperature Accuracy | ±0.5℃(-10.85℃) |
| Pressure Range | -0.1~4.2MPa (Gauge Pressure) |
| Pressure Accuracy | 1% |
