Product Details:
|
| Application: | R410A R134 R12 R502 R22 | Material: | Stainless Steel Case Brass Internal |
|---|---|---|---|
| Type: | Precision Pressure Gauge | Connection: | 1/4 SAE |
| High Light: | Digital Commercial Refrigeration Repair Parts,AC Commercial Refrigeration Repair Parts,Aluminum Refrigerant Gauge Set |
||

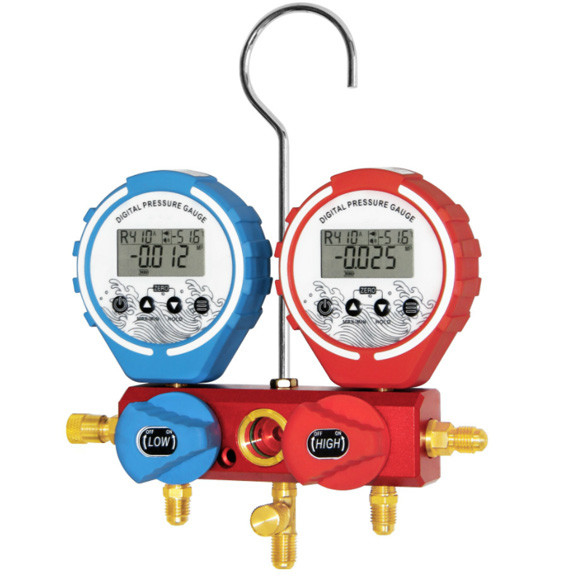

Digital Aluminum Manifold Gauge Set With Recycling Aluminum Valve,Refrigerant Manifold Gauge Set Air Conditioning Tools
Brief Introduction
Digital Refrigeration Pressure Gauge adopts the latest Microprocessor Controller, 24-Bit Analog-to-Digital Converter and high precision pressure sensor. It can both accurately measure the pressure of the gas & liquid, and also the vacuum pressure.
It has long life, high stability and precision measurement, because of having no moving parts. It contains the common parameter of the pressure& temperature. The pressure, condensing temperature and evaporation temperature is easy to read by the large screen. It is widely used in the hydraulic and barometric measurement, like refrigeration equipment, air-conditioner refrigerant tools, refrigerant pressure measurement, vacuum equipment, pneumatic equipment, etc.
Features
Gas and liquid can be measured.
Vacuum degree can be measured.
Common parameter of the refrigerant pressure& temperature is contained.
LCD display with back light.
Long battery life; No electricity after power off.
More durable because of the rubber protective covering
Specification parameter
|
Item |
Digital Aluminum Manifold Gauge |
|
Model |
SBF-L-05*GS |
|
Order No. |
20023 |
|
Packing |
1 set/box, 5 boxes/carton |
|
Measuring Speed |
1 times/ second |
|
Allowed overload pressure |
100% range |
|
Sensor failure pressures |
300% range |
|
Pressure connection |
NPT1/8 |
|
Working humidity |
10~90%RH |
|
Working temperature |
-10~50℃ |
|
Temperature of ensuring the accuracy |
20±5℃ |
|
Battery |
6F22 or 6LR61 laminated 9V battery |
|
Protection level |
IP66 |
|
Productive standard |
JB/T 7392-2006 |
